TES-32 배터리 시험기

판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

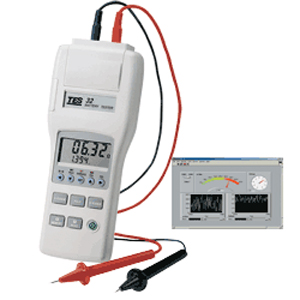

TES-32 Battery Capacity Tester (RS-232)

  • Test Condition Without Shutting Down Battery.
  • Simultaneously Measure Battery Resistance, Voltage.
  • Comparator Function.
  • Rates Conditions as Pass, Warning, or Fail.
  • Memory and Read Function
  • Compact and Lightweight.
  • RS232 PC Interface
Storage Battery Systems Battery Capacity Testers,
Check battery condition in seconds, with the battery in service!

Battery Types Tested Compact storage batteries, Alkali and lead-acid batteries..
Battery Capacity 0 to 500AH
Resistance Ranges : 40mΩ, 400mΩ, 4Ω, 40Ω
Resolution : 10μΩ, 100μΩ, 1mΩ, 10mΩ
Accuracy : ±(1%reading + 8digits) on all ranges.
Measurement Current : 25mA, 2.5mA, 250μA,25μA
Frequency : 1KHz
Accuracy : ±10%
Voltage Measurement : 4V, 40V
Resolution : 1mV, 10mV
Accuracy : ±(0.1%rdg ±6digits)
Open Circuit Voltage 3.5Vpp max
Data Memory 500 data sets
Continuous Data Memory 9600 data sets (only use PC download)
Comparator

Setting : Resistance upper and lower limits and voltage
throughold limit.
Memory : 99 sets of values

Operating Environment 0℃ to 50℃ (32℉ to 122℉), 80%RH or less, non-condensing.
Maximum Input Voltage 50VDC
Power Supply or AC Adapter Six size AAA 1.5V
Battery Life 7 hours
Weight Approx. 500g including batteries
Dimensions Approx. 250(L)×100(W)×45(H)mm
Accessories Instruction manual, Batteries, Test probe, Software,
RS232 cable.
Optional Accessories AC adaptor (Isolated output 9VDC)
