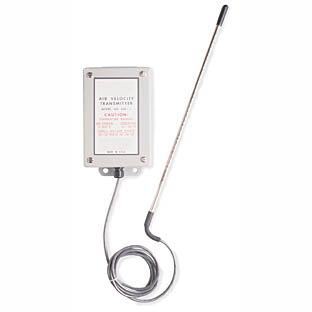

DW33984 Air Velocity Transmitter

제조사 : DAVIS
제품번호:DW33984
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The series 640 features ±2% accuracy with four field selectable ranges of 0-200,0-1000,0-3000/0-12,000 FPM
The series 640 features ±2% accuracy with four field selectable ranges of 0-200, 0-1000, 0-3000 and 0-12,000 FPM.

The transmitter is easily installed with the mounting hardware supplied, including a split flange for securing the sensing probe in the duct. Requiring only 22-28 volts AC or DC for power it has a 4-20 mA output. The NEMA 13 housing is suitable for all indoor industrial institutional or commercial installations.


SPECIFICATIONS

General

Media Air
Ranges 0-200, 0-1000, 0-3000, 0-12,000 FPM
(field selectable: referenced to standard conditions)
Accuracy (% of FS)
0-200 FPM Range
  ±5% @32-180°F
  ±9% @0-32° or 180-200°F
0-1,000, 0-3,000, 0-12,000 FPM Ranges
  ±2% @32-180°F
  ±6% @0-32° or 180-200°F
± 5% of full span output, 32°-180°F
± 7% of full span output, 0°-32°F & 180°-200°F
Electrical
Power Supply 22-28 VDC or VAC
Output Signal 4-20 mA DC
Loop Resistance 0-300Ω
Current Consumption 250 mA Maximum Warm-Up time: 3 to 5 minutes
Performance Zero Output: 4 mA
Full Span output 20 mA
Environmental Temperature Ranges: Dry Air Stream (Probe) 0 to 200°F Operating (Transmitter) 32° to 160°F
Storage 0° to 200°F
Mechanical
Weight 3 lbs. (includes probe and cable)
Probe length 12" insertion depth
Cable length 6 feet
Range Adjustment protected switches
 1 year warranty

CAT NO. MODEL DEscRIPTION AVAIL PRICE
DW33984   640-0   AIR VELOCITY TRANSMITTER   Yes   1,278,720
ML3814101   MEC24-1000   OPTIONAL 24V LINEAR POWER SUPPLY 1 AMP OUTPUT CURRENT FOR Air Velocity Transmitter with Hot Wire Sensor   Yes   429,840
