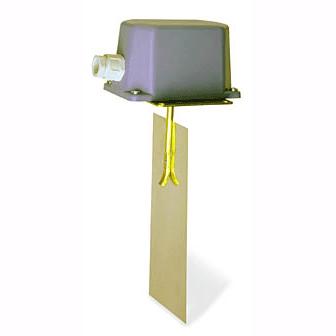

KB1100 Air Flow Switch

제조사 : DAVIS
제품번호:KB1100
판매가격  : 원
포인트 : 점
수량 :
  PLUS    MINUS    개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The LPS air flow switches are widely used to control minimum and maximum air flow rates.
The LPS air flow switches are widely used to control minimum and maximum air flow rates. In addition to being robust, they have the added benefit of being inexpensive as well.

The principle of operation is quite simple. Air flow exerts a force on a paddle and through a lever, actuates a dust-tight microswitch. The switching point may be adjusted continuously within a wide range, making the LPS useful in a large variety of applications. The instrument is factory set to switch at 195 FPM. To handle air velocities of more than 920 FPM, the paddle may be cut at a precalibrated mark. This automatically changes the factory set point to 490 FPM.

Features
  • Adjustable switch point
  • 15 A SPDT switch
  • Universal mounting
  • Low cost
SPECIFICATIONS

Maximum Air Temperature

 185°F
Mounting Universal.
The arrow must point in flow direction. Vertical installation requires re-adjustment of the switching point to compensate for paddle weight.
Micro Switch SPDT, 15A, 250 VAC, 2,000VA
Materials Paddle: Stainless Steel
Lever: Brass
Adjustable Velocity Range FPM
Switching-off Min. 195, Max. 1575
Switching-on Min. 395, Max. 1810
CAT NO. MODEL DEscRIPTION AVAIL PRICE
KB1100 LPS-700 LPS AIR FLOW SWITCH Yes 594,000
