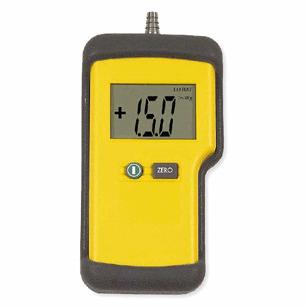

UE150 Single Input Electronic Manometer

제조사 : DAVIS
제품번호:UE150
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The UE150 & UE200 provides a simple, time-saving alternative to U-tube pressure measurements.
The UE150 & UE200 provides a simple, time-saving alternative to U-tube pressure measurements. The UE200 with dual input differential measurement has a duel scale: 60" water gauge and 150 mBar. To meet the high durability expectations of today’s technicians, the UE200 is equipped with sturdy metal fitting valves for a secure and solid connection and is protected by a ruggedized rubber-boot with a built-in magnet, allowing for hands free operations. The UE150 single input manometer has a simplified user interface which measures positive and negative pressure to 20" water gauge.

UE150 Single Input
  • Measures positive and negative pressure to 20" water gauge .05" resolution below 9.95"
  • Ruggedized with sturdy metal fittings
  • Rubber-boot with built-in magnet
  • Auto power off
  • One year limited warranty

UE200 Dual Input
  • Dual scale: 60" water gauge and 150 mBar .01" wg resolution below 9.99"
  • Ruggedized with sturdy metal fittings
  • Rubber-boot with built-in magnet
  • Min/Max
  • Data hold
  • Auto power off
  • Back-lit display
  • One year limited warranty

SPECIFICATIONS
  Parameter Resolution Accuracy Range
UE150 Single Input Manometer
  Water Gauge  0.05" -9.95" to +9.95" WG
0.1" < -10", > +10" WG
±1.5% FS  -20" to +20" WG
  Operating Range  32 -104°F (0 - 40°C),
10 - 90% RH non condensing

  Battery Life 50 hours min with alkaline battery
UE200 Dual Input Manometer
  Water Gauge  0.01" -9.99" to +9.99" WG
0.1" < -10", > +10" WG
±1.5% FS  -60" to +60" WG
  mBar -150 to +150 mBar
  Operating Range 32 -104°F (0 - 40°C), 10 - 90% RH
  Battery Life 40 hours min with alkaline battery

CAT NO. MODEL DEscRIPTION AVAIL PRICE
UE150   EM150   Single Input Electronic Manometer   Yes   213,840
UE200   EM200   Dual Input Electronic Manometer with differential measurement   Yes   378,000
