Measures Virtually any Liquid Media Compatible with 316L Stainless Steel

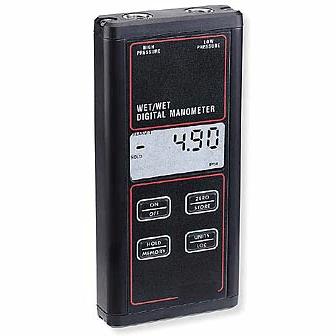

These Digital Manometers are versatile, hand-held, battery operated manometers available in several basic ranges from 0-15.0 psi (0-100 kPa) to 0-100 psi (0-700 kPa). Units are highly accurate (±0.5% FS) for positive or positive differential pressure measurement and can tolerate most any liquid media compatible with 316L stainless steel.
You can select from up to seven common English and metric pressure units (PSI, in. H20, in. Hg, mm Hg, kPa, bar or mbar) so conversions are not necessary. A memory function allows storage of up to 20 readings for later recall and a backlight provides auxiliary lighting for hard-to-see locations.
Standard are a hold feature and both visual and audible overpressure alarms. A 9V alkaline battery is included that provides up to 100 hours of operation. Units have dual 1/8" female NPT connections.
Features
Measures Virtually any Liquid Media Compatible with 316L Stainless Steel
Instant Selection from up to Seven English/Metric Units
Stores 20 Readings in Memory for Later Reference
Both Audible and Visual Overpressure Alarms
Operates up to 100 Hours on a Single 9 Volt Battery
SPECIFICATIONS
Service
Compatible, non-combustible gases & liquids
Wetted Materials
Type 316L SS
Accuracy
±0.5% F.S., 60 to 78°F (15.6 to 25.6°C); ±1.5% F.S. from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C)
Pressure Hysteresis
±0.1% of full scale
Pressure Limits
See Chart
Temperature Limits
32 to 104°F (0 to 40°C).
Storage Temperature Limits
-4 to 176°F (-20 to 80°C)
Display
0.42" (10.6 mm) 4-1/2ý digit liquid crystal
Resolution See Chart
Power Requirements
9 volt alkaline battery. Battery included but not connected
Weight
14.1 oz. (400 g)
Connections
Two 1/8" (3.18 mm) female NPT
Agency Approvals
CE
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
DW4901
490-1
0-15 PSI Wet/Wet Handheld Digital Manometer
Yes
1,026,000
DW4902
490-2
0-30 PSI Wet/Wet Handheld Digital Manometer
Yes
1,026,000
DW4903
490-3
0-50 PSI Wet/Wet Handheld Digital Manometer
Yes
1,026,000
DW4904
490-4
0-100 PSI Wet/Wet Handheld Digital Manometer
Yes
1,026,000
DW4905
490-5
0-500 PSI Wet/Wet Handheld Digital Manometer
Yes
1,026,000
