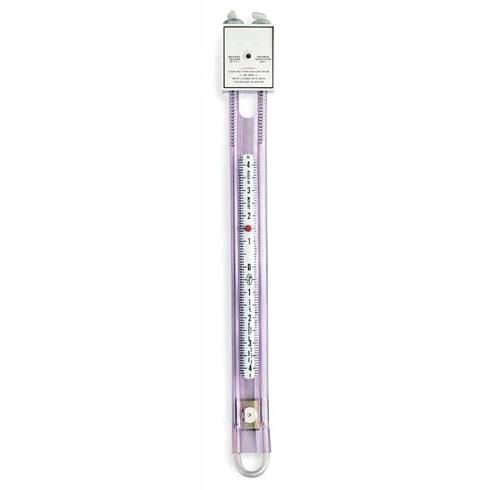

DW33207 Roll Up U Tube Manometer

제조사 : DAVIS
제품번호:DW33207
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Slack Tube Manometers are as accurate as the finest laboratory “U” Gauges
The Slack Tube Manometers are as accurate as the finest laboratory “U” Gauges, yet they are made to roll up compactly for easy carrying and to withstand rough usage.Simply unroll the Slack Tube Manometer and set up to read static pressure, vacuum, or differential pressure. Magnetic clips hold it firmly to any steel surface or hang it on a nail. Turn connectors one revolution to open. When the pressure is imposed, add the number of inches one column travels up to the number of inches the other column travels down. When reading is completed, turn connectors to seal columns, roll up manometer into compact coil and tuck it away in its circular metal case or tool box. No fluid loss. No loose caps or inserts to lose.

Slack Tube Manometers cover a wide range of pressure readings from 4 to 0 to 4" up to 60 to 0 to 60". Use them in determining velocity in static pressures, for leakage, fan and blower tests, calibrating control devices, checking gas pressure and many other applications.


CAT NO. MODEL DEscRIPTION AVAIL PRICE
DW33207   1211-8   ROLL UP U TUBE MANOMETER   Yes   105,840
Ranges, Inches:   4 to 0 to 4
Mercury Req. Oz. (Wt.)   6
DW33208   1211-12   ROLL UP U TUBE MANOMETER   Yes   114,480
Ranges, Inches:   6 to 0 to 6
Mercury Req. Oz. (Wt.)   7
DW33209   1211-16   ROLL UP U TUBE MANOMETERS   Yes   114,480
Ranges, Inches:   8 to 0 to 8
Mercury Req. Oz. (Wt.)   9
DW33210   1211-24   ROLL-UP U TUBE MANOMETER   Yes   118,800
Ranges, Inches:   12 to 0 to 12
Mercury Req. Oz. (Wt.)   12 1/2
DW33211   1211-30   ROLL-UP U-TUBE MANOMETER   Yes   123,120
Ranges, Inches:   15 to 0 to 15
Mercury Req. Oz. (Wt.)   15
DW33212   1211-36   ROLL UP U TUBE MANOMETER   Yes   125,280
Ranges, Inches:   18 to 0 to 18
Mercury Req. Oz. (Wt.)   17 1/2
DW33213   1211-48   ROLL UP U TUBE MANOMETER   Yes   133,920
Ranges, Inches:   24 to 0 to 24
Mercury Req. Oz. (Wt.)   22 1/2
DW33214   1211-60   ROLL UP U TUBE MANOMETER   Yes   151,200
Ranges, Inches:   30 to 0 to 30
Mercury Req. Oz. (Wt.)   27
DW33215   1211-72   ROLL UP U TUBE MANOMETER   Yes   151,200
Ranges, Inches:   36 to 0 to 36
Mercury Req. Oz. (Wt.)   32
DW33216   1211-120   ROLL UP U TUBE MANOMETER   Yes   162,000
Ranges, Inches:   60 to 0 to 60
Mercury Req. Oz. (Wt.)   57
DW33217   1211-50   ROLL UP U TUBE MANOMETER   Yes   125,280
Range, CM   25 to 0 to 25
Mercury Req. Oz. (Wt.)   11
DW33218   1211-100   ROLL UP U TUBE MANOMETER   Yes   127,440
Range, CM   50 to 0 to 50
Mercury Req. Oz. (Wt.)   18 1/2
DWA130   A130   OPTIONAL MERCURY A130 8 OZ. *HAZMAT* FOR Dwyer Roll-Up "U" Tube Manometers   Yes   42,660
