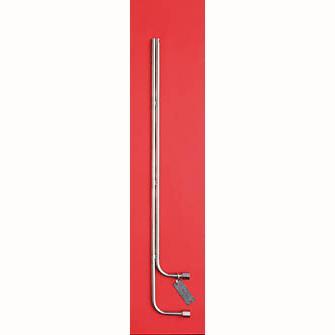

DW3316018 "S" Tyre SS Pitot Tube 18"

제조사 : DAVIS
제품번호:DW3316018
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Series 160S Pitot Tubes are designed specifically for flow measurement of dirty,particulate laden air
Series 160S Pitot Tubes are designed specifically for flow measurement of dirty, particulate laden air or gas streams typical in environmental testing. Large 5/16"diameter stainless steel tubing resists plugging under harsh, sooty conditions which quickly block conventional flow sensors. Total and static pressure tubes are precisely aligned and welded together every six inches for maximum accuracy, strength and long term durability. Versatile 1/8" female NPT connections easily adapt to any type of pipe or tubing. A pair of 1/8"NPT to 3/16"I.D. tubing adapters is included plus a handy molded vinyl cap to protect tip when not in use. Supplied with complete instructions and air velocity calculator slide chart.

Features
  • Meets EPA specifications 40CFR (ch. 1)
  • Long lasting, welded stainless steel construction
  • 1/8"NPT female connections, permanently welded
  • Rated to 1500°F (815°C)

CAT NO. MODEL DEscRIPTION AVAIL PRICE
DW3316018   160S-18   "S" TYPE SS PITOT TUBE 18"   Yes   231,120
DW3316024   160S-24   "S" TYPE SS PITOT TUBE 24"   Yes   231,120
DW3316036   160S-36   "S" TYPE SS PITOT TUBE 36"   Yes   239,760
DW3316048   160S-48   "S" TYPE SS PITOT TUBE 48"   Yes   270,000
DW3316060   160S-60   "S" TYPE SS PITOT TUBE 60"   Yes   300,240
DW3316072   160S-72   "S" TYPE SS PITOT TUBE 72"   Yes   343,440
