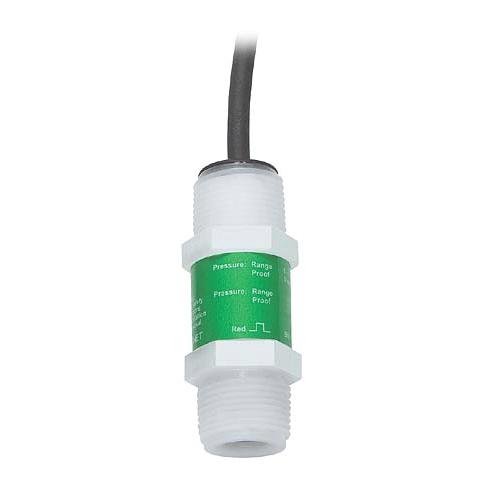

SG908420 Pressure Sensor 3/4" mnpt 0-50 psi remote

제조사 : DAVIS
제품번호:SG908420
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Standard 3/4" NPT Process Connection. Flush ceramic diaphragm. Easy installation
Features
  • Standard 3/4" NPT Process Connection
  • Flush ceramic diaphragm
  • Easy installation

Applications
  • HVAC systems
  • Scrubbers
  • Pump Protection
  • Marine
  • Water Management
  • Irrigation Systems
  • Wastewater

SPECIFICATIONS

Proof Pressure

150% of full scale
Accuracy ±1% of full scale
Wetted Materials PVDF, Ceramic, FPM (Viton®)
Operating Temperature 0°C to 85°C (32°F to 185°F)
Standards CSA, CE, UL Listed

CAT NO MODEL DEscRIPTION AVAIL PRICE
SG908420   3-2450-1L   PRESSURE SENSOR 3/4" MNPT 0-50 PSI REMOTE   Yes   775,440
SG908421   3-2450-2L   PRESSURE SENSOR 3/4" MNPT 0-50PSI INTEGRAL   Yes   775,440
SG908422   3-2450-1H   PRESSURE SENSOR 3/4" MNPT 0-250PSI REMOTE   Yes   775,440
SG908423   3-2450-2H   PRESSURE SENSOR 3/4" MNPT 0-250PSI INTEGRAL MD:3-2450-2H   Yes   775,440
SG908426   3-2450-1U   Pressure Sensor 3/4" male NPT, 0 to 10 psi, 15 ft. cable remote   Yes   775,440
SG908427   3-2450-2U   Pressure Sensor 3/4" male NPT, 0 to 10 psi, 6 in. cable integral   Yes   775,440
