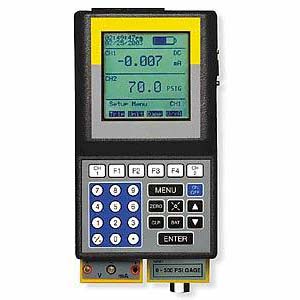

BE325 Beta Intrinsically Safe Pressure Calibrator

제조사 : DAVIS
제품번호:BE325
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

This unit is both a two-channel and multi-range device.23 Interchangeable pressure modules
This unit is both a two-channel and multi-range device. Changing ranges is as easy as plugging in new input modules, which can be done even while the unit is powered up. The signals from installed modules are automatically recognized and assigned to the proper channel. External pressure connection is made by a 1/8" FNPT 316SS connector. This plug-in design also simplifies maintenance. Only the input modules themselves require re-calibration. You send only the out-of-calibration modules back to the shop, while still using the unit in the field.

When operated in the documenting mode, the unit works with many popular calibrating software packages including Emerson AMS, Cornerstone, and Honeywell Document. Instrument tag numbers and calibration routines can be downloaded and used for field calibration. When tests are completed, the data can be uploaded back into the host calibration software.

Features
  • Intrinsically safe design for use in Class I Div 2, Groups A, B, C & D hardous areas
  • 14 selectable engineering units; kg/cm2; ATM; mBAR; BAR; kPa; mmHg; “Hg; “H20 at 4°C, 20°C, 60°F; cmH2O at 4°C, 20°C, 60°F
  • Accuracy: pressure ±0.025% FS, Electrical ±0.01% FS
  • 23 Interchangeable pressure modules
  • Minimum/maximum measurement memory

SPECIFICATIONS

DC input module

  Accuracy ±0.01% FS ±0.01% rdg
  Ranges 0 to ±249.99 mVDC; 0 to ±2.4999 and ±24.999 VDC; 0 to 24.999
    and 149.99 mADC
Environmental
Temperature/humidity -20°C to 50°C (operating) / 0 to 95%
Alarm trip detect Wet contact input, 48 VDC max.
Power supply Rechargeable NiCd external battery pack
Charging 16 hours maximum; fast charge battery optional, 90 min. charge time
Size/weight 4.3" x 7.5" x 2.4" (70mm x 190mm x 60mm)/ 1.5 kg with carrying case and accessories
CAT NO. MODEL DEscRIPTION AVAIL PRICE
BE325   910325-70   Beta Intrinsically Safe Pressure Calibrator   Yes   2,797,200
Iincludes: Voltage/current input module, rechargeable NiCd, one set of test leads, trickle charger, instruction manual, vinyl carrying case, 9-pin D shell to 9-pin D shell serial cable.
BE3251   325K   Beta Kit – includes Gauge and one pressure module (please specify pressure range)   Yes   3,877,200
Iincludes: Voltage/current input module, rechargeable NiCd, one set of test leads, trickle charger, instruction manual, vinyl carrying case, 9-pin D shell to 9-pin D shell serial cable.
BE3252   917007-001   Spare DC Input Module   Yes   1,285,200
BE3700   917004-001   Spare Intrinsically Safe Battery Pack   Yes   507,600
BE910331-005   910331-005   OPTIONAL Module, 0 to 5 PSIG (0 to 350 mBAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200
BE910331-007   910331-007   OPTIONAL Module, 0 to 7.2 PSIG (0 to 500 mBAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200
BE910331-010   910331-010   OPTIONAL Module, 0 to 10 PSIG (0 to 700 mBAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200
BE910331-030   910331-030   OPTIONAL Module, 0 to 30 PSIG (0 to 2 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910331-050   910331-050   OPTIONAL Module, 0 to 50 PSIG (0 to 3.5 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910331-100   910331-100   OPTIONAL Module, 0 to 100 PSIG (0 to 7 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910331-150   910331-150   OPTIONAL Module, 0 to 150 PSIG (0 to 10 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910326-300   910326-300   OPTIONAL Module, 0 to 300 PSIG (0 to 20 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200
BE910326-301   910326-301   OPTIONAL Module, 0 to 1,000 PSIG (0 to 70 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910326-315   910326-315   OPTIONAL Module, 0 to 1,500 PSIG (0 to 100 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910326-303   910326-303   OPTIONAL Module, 0 to 3,000 PSIG (0 to 200 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910326-305   910326-305   OPTIONAL Module, 0 to 5,000 PSIG (0 to 350 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910329-005   910329-005   OPTIONAL Module, 0 to 5 PSID (0 to 350 mBAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910329-030   910329-030   OPTIONAL Module, 0 to 30 PSID (0 to 2 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910329-050   910329-050   OPTIONAL Module, 0 to 50 PSID (0 to 3.5 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910327-005   910327-005   OPTIONAL Module, 0 to -5 PSIG (0 to -350 mBAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910327-015   910327-015   OPTIONAL Module, 0 to 7-15 PSIG (0 to -1 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910332-015   910332-015   OPTIONAL Module, 0 to 15 PSIA (0 to 1 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910332-030   910332-030   OPTIONAL Module, 0 to 30 PSIA (0 to 2 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910332-050   910332-050   OPTIONAL Module, 0 to 30 PSIA (0 to 2 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910332-100   910332-100   OPTIONAL Module, 0 to 100 PSIA (0 to 7 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910333-015   910333-015   OPTIONAL Module, -15 to 15 PSG (-1 to 1 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200



BE910333-030   910333-030   OPTIONAL Module, -15 to 30 PSG (-1 to 2 BAR) FOR Beta Intrinsically Safe Documenting Process Calibrator   Yes   1,501,200
