EA212100 Calibration Pump, 0 to 150 PSI

제조사 : DAVIS
제품번호:EA212100
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

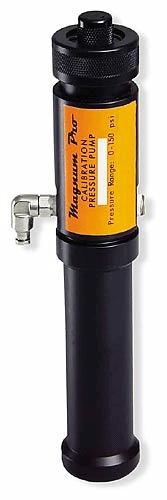

The Magnum Pro Calibration Pump is the most reliable, rugged pump for calibrations under 150 psi.
The Magnum Pro Calibration Pump is the most reliable, rugged pump for calibrations under 150 psi. Utilizing a "Schrader" valve, the Magnum totally eliminates vent valve failure. By eliminating needle valves and using Double O-rings, these pumps are leak free and virtually never need rebuilding. The thermal characteristics of the Delrin housing solve the problem of reading drift by eliminating heat transfer.

The unique hose and fittings simply push on to the unit, and a swivel keeps the hose from tangling. If the hose is damaged simply cut off the end and re-insert it into the fitting. Construction is so strong that the Magnum pumps can withstand repeated drops onto a concrete floor without damaging the unit.

A special, non-dispersing lubricant, makes the first stroke as easy as the rest, yet eliminates wear due to the grease migrating to the ends of the stroke. An optional hose kit is available eliminating the need for a "tee-fitting" when connecting a sensor and calibrator.

Features
  • No needle valves, “MASH-Proof” vent valve
  • Positive pressure version 0-150 psi
  • Vacuum version 0 to -28.8" Hg
  • Rugged Delrin and anodized aluminum construction
  • Dual O-rings on all pistons insures zero leakage
  • Unique swivel hose – snake proof
  • Rugged, damage resistant housing
  • Extra large vernier adjustment range
  • Two year quibble-free warrantee

SPECIFICATIONS

Model MP-P

0 to 150 PSI
Model MP-V 0 to –28"Hg
Size 9" long 1-1/2" dia
Connections two 1/8" NPT female ports, one with a removable plug.

CAT NO. MODEL DEscRIPTION AVAIL PRICE
EA212100   MP-P   Calibration Pump, 0 to 150 PSI   Yes   810,000
Includes: Pump, and one hose assembly with the end as 1/4" NPT female.
EA212101   MP-V   Calibration Pump, 0 to -28.8 PSI   Yes   810,000
Includes: Pump, and one hose assembly with the end as 1/4" NPT female.
EA212102   HK   OPTIONAL Hose Kit FOR Pressure and Vacuum Calibration Pump   Yes   105,840
EA212103   MK   OPTIONAL Rebuilding Kit FOR Pressure and Vacuum Calibration Pump   Yes   Call 031-777-1588
