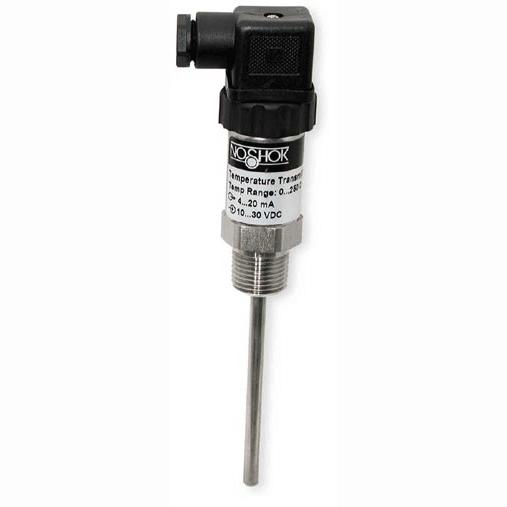

NS800 RTD Temperature Transmitter

제조사 : DAVIS
제품번호:NS800
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Series NS800 Temperature Transmitter provides a previously unequalled level of performance
The Series NS800 Temperature Transmitter provides a previously unequalled level of performance, reliability and simplicity in one package. Utilizing proven 100 ohm platinum resistance technology coupled with a digital amplifier insures reliability and maximum performance.

A rigorous test and inspection process is performed prior to shipment to further insure 100% "out of the box" reliability. The NS800 Series Temperature Transmitters are also covered by an exclusive 3 Year Warranty.

Features
  • Proven Platinum 100 ohm Sensor
  • Maximum Reliability
  • Wide Variety of Temperature Ranges and Connections
  • CE Compliant

Applications
  • Water Systems
  • Storage Tanks
  • Industrial Machinery and Machine Tools
  • HVAC Systems
  • Refrigeration Systems
  • Hydraulic Systems

SPECIFICATIONS

Output Signal

4-20mA 2 wire
Temperature Ranges Standard ranges from -40°F to 500°F
Accuracy +/-0.5% Full Scale
Power Supply 12-30Vdc
Wetted Materials 316 stainless steel
Case Material 316 stainless steel
Ambient Temperature -40 to 185°F (-40 to 85°C)
Storage Temperature -40 to 185°F (-40 to 85°C)
Environmental Rating IP65 according to EN 60529/IEC529
Electromagnetic Rating CE compliant to EMC norm EN 61326:1997/A1:1998
RFI, EMI and ESD Protection
Electrical Protection Reverse polarity, over-voltage and short circuit protection
Weight Approximately 4 oz.

Transmitter Ordering Example
800-40/120-1-1-8-8-060-6

$175.00

800-25/125-1-1-8-8-060-6

175.00

800-0/200-1-1-8-8-060-6

175.00

800-50/500-1-1-8-8-040-6

175.00


Description Price Order Information in Bold (gray area)

  Temperature Ranges
 -40/120
  -40-120 °F
25/125
N/C 25-125 °F
0/140
  0-140 °F
0/200
  0-200 °F
20/240
  20-240 °F
50/300
  50-300 °F
50/500
  50-500 °F

  Accuracy
 1
N/C +/-0.5% Full Scale

  Output
 1
N/C 4-20mA
  Other outputs available on special request

Process Connection
 8
N/C 1/2" NPT male

Electrical Connection
 8
N/C Hirschmann (DIN 43650A with mating connector)
1
11.35 36" Cable ( connected to option 8)

Stem Length
 040
N/C 4 inch
060
4.50 6 inch
090
6.00 9 inch
120
8.00 12 inch

Stem Diameter
 3
7.50 3 mm
6
N/C 6 mm
8
3.00 8 mm

CAT NO. MODEL DEscRIPTION AVAIL PRICE
NS800   800   RTD Temperature Transmitter   Yes   378,000
Must Specify: Temp Range, Output, Electrical Connection, Stem Length and Stem Diameter (See ordering information in above chart)
