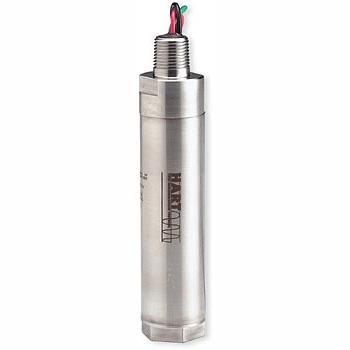

VI970 Absolute pressure transmitter

제조사 : DAVIS
제품번호:VI970
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

This allows for self diagnostics, the setting, storage, and recall of calibration data
Viatran's Model 970, designed specifically for the oil production industry, features a HART communications protocol that enables digital communication with the transmitter. This allows for self diagnostics, the setting, storage, and recall of calibration data, as well as the efficiency of a multidrop network for multiple transmitters.

The HART protocol allows a simultaneous analog and digital signal transmission.

The "70" Series also features bonded foil strain gauge sensors. The inherent overpressure protection in this technology helps to eliminate damage to the sensors when they are exposed to hydraulic spikes.


Features
  • Simultaneous digital/analog communications
  • 10:1 rangeability
  • Small size and weight

Applications
  • Offshore oil rigs
  • Oil production platforms
  • Natural gas pipelines
  • Rig safety systems

SPECIFICATIONS

Full Scale Pressure Range (FSPR)

 0-100, 150, 300, 500, 750, 1K, 1500, 2K, 3K, 5K, 7500, 10K, 15K, 20K, 30K, 40K, 50K, 60K, 75K, 100K PSIS, PSIA
Linearity (BFSL)
0-100 PSI ±0.5% FSO
150-10K PSI ±0.2% FSO
15K - 20K PSI ±0.25% FSO
Hysteresis ≤ ± 0.1% FSO
Repeatability ±0.1% FSO
Full Scale Output 16 mA
Resolution
Sensor (Analog to Digital Converter) 18 bits
Output (Digital to Analog Converter) 12 bits
Drift ≤ ±0.25% FSO per 6 months
Response Time Analog output response to a step change in pressure will be from 0.07 sec. minimum to a 36 sec. maximum for one time constant and is adjustable through software.
Thermal Zero Shift ≤ ±1.0% FSO per 100°F
Thermal Sensitivity Shift ≤ ±1.0% FSI per 100°F
Operating Temperature Range -40°F to +190°F
Non-Operating Temperature Range -65° F to +250° F
Supply Voltage 7 to 30 VDC
Output Signal Two wire 4-20mA. Digital process signal superimposed on 4-20mA signal, available to any host computer system conforming to HART protocol.
Load Impedance 230 Ω to 1,400 Ω
Pressure Connection
0-100 thru 0-15K 1/4" NPT(F)
0-20K thru 0-50K 9/16" - 18 gland thread, pressure relieved.
1/4" OD high pressure tube, 60° come.
Conforms to autoclave type F250-C
0-60K thru 0-100K 5/8" - 18 gland thread, pressure relieved.
5/16" OD high pressure tube, 60° cone.
Conforms to autoclave type F312-C150.

Standard Pressure Ranges in PSI - when ordering, please choose code that matches your specific range.

Code

Range

Code

Range

Code

Range

Code

Range

AH

0-50

AW

0-750

BF

0-5000

BS

0-30K

AM

0-100

AY

0-1000

BH

0-7500

BU

0-40K

AN

0-150

AZ

0-1500

BM

0-10K

BW

0-50K

AP

0-200

BA

0-2000

BP

0-15K

BZ

0-60K

AR

0-300

BC

0-3000

BQ

0-20K

EC

0-75K

AU

0-500





BR

0-25K

EG

0-100K
CAT NO. MODEL DEscRIPTION AVAIL PRICE
VI970   970A   Absolute pressure transmitter (up to 15K)., Specify Range   Yes   2,149,200
VI971   970A   Absolute pressure transmitter (20K and above), Specify Range   Yes   3,013,200
VI972   970S   Sealed gauge pressure transmitter (up to 15K), Specify Range   Yes   2,106,000
VI973   970S   Sealed gauge pressure transmitter (20K and above), Specify Range   Yes   2,926,800
