KRMax B6 Ultimate Balancing Charger 다목적 충전기 (Li-ion 배터리)

판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

충방전 가능 배터리 : Ni-Cd, No-MH, Li-Po, Li-ion, LiFePO4, 납축전기
최대 충전 전력 : 200Watt

작동 전압 범위: DC 11. 0-18.0 Volt
최로 전력: 최대 충전 전력: 200Watts
최대 방전 전력 : 25Watts
충전 전류 범위: 0.1-10.0A
방전 전류 범위: 0.1-5.0A
바란싱용 전류 누출 Current drain for balancing Li-Po/Ion/Fe: 300mA/cell
Li-ion/Fe/Polymer cell count: 1-6cells
NiCd/NiMH battery cell count: 1-18cells
납축전지 전압: 2-20V
Net weight: 607g
Dimension: 150x116.3x53mm



Features

<scRIPT src="http://www3.towerhobbies.com/cgi-bin/wti6011p?I=TCPP9000">

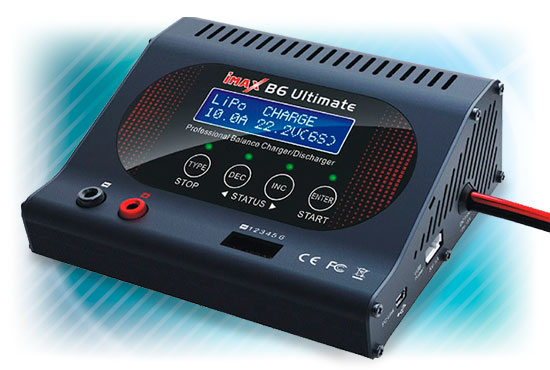

Sky RC iMax B6 Ultimate Balancing Charger
<scRIPT language=javascript> if (AC_FL_RunContent == 0) { alert("This page requires AC_RunActiveContent.js."); } else { AC_FL_RunContent( 'codebase', 'http://download.macromedia.com/pub/shockwave/cabs/flash/swflash.cab#version=9,0,0,0', 'width', '550', 'height', '400', 'src', 'gpmz4111', 'quality', 'high', 'pluginspage', 'http://www.macromedia.com/go/getflashplayer', 'align', 'middle', 'play', 'true', 'loop', 'true', 'scale', 'showall', 'wmode', 'window', 'devicefont', 'false', 'id', 'gpmz4111', 'bgcolor', '#ffffff', 'name', 'gpmz4111', 'menu', 'true', 'allowFullScreen', 'true', 'allowscriptAccess','sameDomain', 'movie', 'gpmz4111', 'salign', '' ); //end AC code }


Charge, cycle and balance to the max with the KRMax B6 Ultimate Balancing Charger! It’s compatible with 1-18 cell NiCds/NiMHs, 1-6 cell LiPos/LiIons/LiFes and 2-24V lead-acid batteries. Includes a lithium balancer, ten battery memories, a temperature probe, PC connectivity and much, much more.


  • Delta peak voltage detection prevents overcharging.
  • Stores up to ten battery memories.
  • Easy-to-read LCD screen.
  • Fan cooling system helps regulate the unit’s operating temperature.
  • USB port also provides 5V/1A continuous current for digital cameras, cell phones and various other electronic devices.
  • Temperature probe.
  • USB cable.
  • 12AWG DC power cables with bullet connectors and alligator clips.
  • Two sets of charge leads.
  • 2S-6S LiPo XH adapter.
  • Instruction manual.
  • Software disc.
  • Compatible with 1-18 cell NiCds/NiMHs, 1-6 cell LiPos/LiIons/LiFes and 2-24V lead-acid batteries.
  • Internal independent lithium cell balancer is included – no separate external unit is required to individually balance each cell.
  • Operating software is optimized to prevent excessive charging and discharging.
  • Lithium battery charge cycles can be accelerated to reduce charge time or slowed down to increase battery life.
  • PC connection (via USB port) allows users to keep track charge/discharge curves, voltage, temperature and amperage. Data can be suppressed or superimposed for comparison purposes.


Specifications
Dimensions: 5.9 in x 4.6 in x 2.1 in (150 mm x 116 mm x 53 mm) Weight: 1.3 lb (607 g) Compatible with: 1-18 cell NiCds/NiMHs; 1-6 cell LiPos/LiIons/LiFes; 2-24V lead-acid batteries Operating Range (DC): 11-18V Circuit Power: Max. Charge Power: 200W Max. Discharge Power: 25W Current Drain for Lithium Balancing: 200mA/cell Requirements: DC power supply
