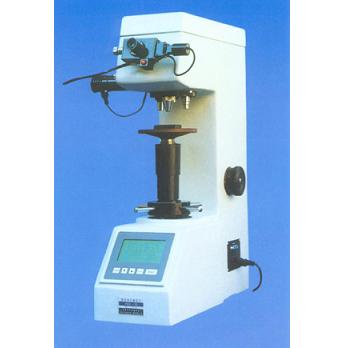

HVS-50 VICKERS 경도계
|
|
MODEL HVS-50 DIGITAL DISPLAY
VICKERS HARDNESS TESTER
Features:
. The test procedure is performed automatically.
. The test result can be converted into various hardness
values automatically.
. An advanced frictionless loading shaft mechanism is
adopted. It can ensure the accurate and reliable test.
Specifications
Measuring range: 5-2900HV
Test force: 9.807、49.03、98.07、196.1、294.2、490.3N
(1, 5, 10, 20, 30, 50kgf)
Max. height of test piece: 180mm
Depth of throat: 125mm
Magnifications of the optical micrometer: 125X, 50X
Min. scale value of the optical micrometer: 1μm, 2.5μm
Power supply: 220V AC or 110V AC, 50/60Hz
Dimensions: 580 x 260 x 730mm
Weight: Approx. 90kg
Main accessories:
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Diamond pyramid pebetrator: 1 pc.
Vickers standardized block: 3 pcs.
| |
| | | |
