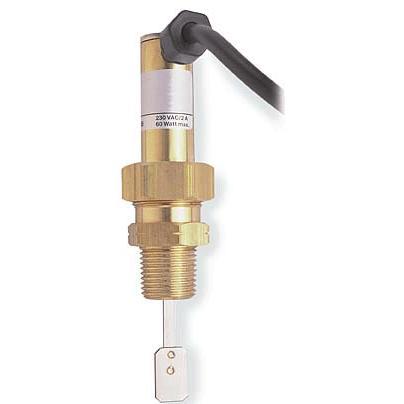

KB3201 Polysulfone Paddle Flow Switch

제조사 : DAVIS
제품번호:KB3201
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Paddle Type PPS Flow Switch is installable in tubes 1" and larger without the use of diaphragms
The Paddle Type PPS Flow Switch is installable in tubes 1" and larger without the use of diaphragms, sealing bellows, or O-rings. These units, made of polysulfone, are almost maintenance free. The pressure drop across the instrument is less than 1.45PSI and independent of the pipe diameter. Operation of the unit is clearly visible through the polysulfone housing. The PPS is available with either a normally open or a normally closed contact. Installation is extraordinarily simple. Simply insert the PPS in a standard T, or a reducing T, sealed with teflon® tape. Allow for a straight pipe run of at least 3-times the pipe diameter on either side of the T to avoid turbulence.

Features
  • Maximum temperature 225°F
  • Easy to install
  • Low pressure drop


CAT NO. MODEL DEscRIPTION AVAIL PRICE
KB3201   PPS-3201   Polysulfone Paddle Flow Switch - N/O, SPST, 15VA   Yes   213,840
KB3202   PPS-3202   Polysulfone Paddle Flow Switch - N/C, SPST, 15VA   Yes   183,600
