KB1000 Compact Local Electronic Display

제조사 : DAVIS
제품번호:KB1000
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

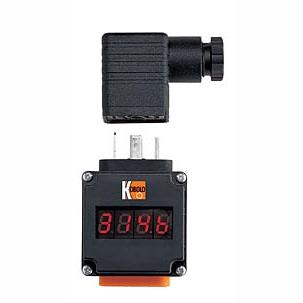

The AUF device is a universal display unit usable in all 4-20 mA transmission circuits.
The AUF device is a universal display unit usable in all 4-20 mA transmission circuits. Sandwiched directly between a standard DIN 43650 (Hirschmann style) plug and socket assembly, the AUF is the easiest of displays to install. The AUF is fully scalable through two control buttons. Programming capabilities include scaling, decimal point location, damping and, for units with a switch, setpoint value.

Power is provided to the AUF directly via the 4-20 mA loop, so no additional power supply is required. The programming information resides inside the AUF’s EEPROM memory, making the unit immune to power failures up to ten years in duration.

Small, easily installed...the AUF is the ideal way to get more from your pressure transmitter. Now you can have your signal, and see it too.


Features
  • Local indication for transducer & transmitters
  • 4-20 mA loop-power driven
  • Works with any Hirschmann® plug
  • 4 digit accuracy
  • Switch available


CAT NO. MODEL DEscRIPTION AVAIL PRICE
KB1000   AUF-1000   Compact Local Electronic Display, Standard Unit   Yes   537,840
KB1001   AUF-1001   Compact Local Electronic Display, Standard Unit With Alarm Switch   Yes   645,840
