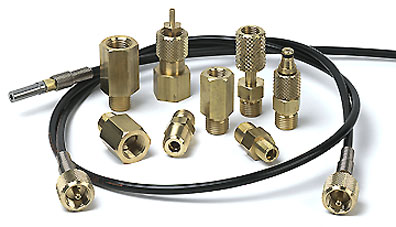

Fitting, Hose and Adapter Set

제조사 : Ralston
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Used to adapt one or both ends of the hose to the commonly used ports. Ralston Instruments adaptors are made of brass and will not rust.

The MB and FB adaptors have an optional internal check valve which opens when the hose is attached.

Quick Test Hose Assembly QTHA
Quick Test Hose assemblies can be furnished in any length with either a knurled brass nut and probe end or a stainless steel 1/4" stub end. The hose has an extremely small diameter (.070"), is very flexible and has a very high pressure rating (6900 psi). This flexibilty, light weight and high rating make it ideal when high pressure must be transmitted for calibration.

The knurled brass ends utilize a unique 'O' ring seal to make a fingertight-pressuretight connection to our series of hose adaptors.

The stainless steel tube stub allows you to swage on your own ferrules and nut for wrench-tight connection to tube fittings. Both types of hose end are reinfored with a tension relief spring.


Quick Test Fittings

For permanent installation in a 1/4' NPT port between instrument and shut-off valve.

Utilizes the unique Quick Test finger-tight, pressure-tight seal Complete with plug and cap, Brass or Stainless Steel Optional built-in check valve, opens when hose is attached Contains Buna N 'O' ring and not for use above 200 degrees F. Specify: QTFT 000B (Brass) QTFT 000S (Stainless Steel)


1/8" Male NPT QTHA 1MBO
1/8" Male NPT internal check valve QTHA 1 MB1
1/4" Maie NPT QTHA 2MBO
1/4" Male NFT stainless steel QTHA 2MSO
1/4" Male NPT internal check valve QTHA 2MB1

1/ 8" Female NPT QTHA 1 FBO
1/8" Female NPT internal check valve QTHA 1FB1
1/4" Female NPT QTHA 2FBO
l /4" Female NPT internal check valve QTHA 2FB1

*AII QTHA TBO adaptors fit Swagelok, Tylok, Parker and Hoke fittings.
1/4" Tube QTHA 2TBO
3/8" Tube QTHA 3TBO
1/2" Tube QTHA 4TBO

1/4" Female Flare QTHA 2FBF

Probe - Nut by I /4" Female NPT QTHA 2 FBA

This is a Quick Test fitting installed in a quality shut-off valve.Valve has a 1/4" Male NPT inlet x 1/4" Female NPT instrument port.
Brass QTVF 000B
Stainless Steel QTVF 000S
