Select from three sensor technologies

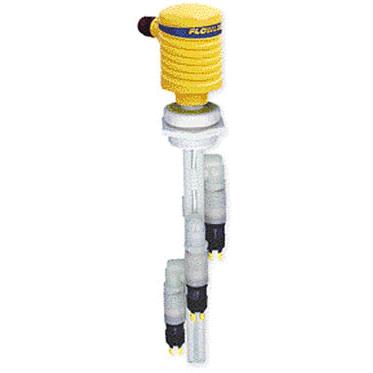

Float Sensors
Are best for clean, non-coating or scaling type liquids including process water, acid, and chemical solutions.
Ultrasonic Sensors
Are ideal for relatively clean, light coating or scaling type liquids including treated water, printing ink, spent acid, solvent and light-weight oils.
Tuning Fork Sensors
Are perfect for more challenging, light to medium coating or scaling type liquids including wastewater, light brine, slurry and caustic solutions.
Dual-Point Switches
Include two sensors and an integral NO/NC relay to control a pump or valve. The 0 to 60 second time delay eliminates relay chatter. LED lights indicate sensor, power, and relay status.
Triple-Point Remote Switches
Include three sensors for critical applications. Two sensors are used as switch points for fill or empty operation, and the third sensor detects high or low alarm conditions. Interface relay output with a remote control device such as the triple-point controller-order below |
| |
|
Digital Indicator Features |
- Easy single button scaling
- Steady, accurate display to ± 199,990
- 41¼2 Digits + extra zero
- UL Listed
- 4 Alarm points with LED status indication
- NEMA 4 front panel
- Isolated 24V transmitter power supply
|
| | |
| CAT NO |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| FN43324 |
|
AV23-4313-12-12-12 |
|
1 FT. FLOAT SENSOR-DUAL POINT |
|
Yes |
|
1,026,000 |
| FN43325 |
|
AV23-4313-24-24-24 |
|
2 FT. FLOAT SENSOR-DUAL POINT |
|
Yes |
|
1,058,400 |
| FN43326 |
|
AV23-4313-36-36-36 |
|
3 FT. FLOAT SENSOR-DUAL POINT |
|
Yes |
|
1,090,800 |
| FN43327 |
|
AV23-4313-48-48-48 |
|
4 FT. FLOAT SENSOR-DUAL POINT |
|
Yes |
|
1,123,200 |
| FN43328 |
|
AV23-4313-60-60-60 |
|
5 FT. FLOAT SENSOR-DUAL POINT |
|
Yes |
|
1,155,600 |
| FN43329 |
|
AV23-4313-72-72-72 |
|
6 FT. FLOAT SENSOR-DUAL POINT |
|
Yes |
|
1,188,000 |
| FN43330 |
|
AV23-4313-84-84-84 |
|
7 FT. FLOAT SENSOR-DUAL POINT |
|
Yes |
|
1,220,400 |
| FN43331 |
|
AV23-4313-96-96-96 |
|
FLOAT SENSOR-DUAL POINT |
|
Yes |
|
1,252,800 |
| FN433418 |
|
AV36-4342-12-12-12-1 |
|
1 FT. FLOAT SENSOR-TRIPLE POINT |
|
Yes |
|
950,400 |
| FN433419 |
|
AV36-4342-24-24-24 |
|
2 FT. FLOAT SENSOR-TRIPLE POINT |
|
Yes |
|
982,800 |
| FN433420 |
|
AV36-4342-36-36-36- |
|
3 FT. FLOAT SENSOR-TRIPLE POINT |
|
Yes |
|
1,015,200 |
| FN433421 |
|
AV36-4342-48-48-48- |
|
4 FT. FLOAT SENSOR-TRIPLE POINT |
|
Yes |
|
1,047,600 |
| FN433422 |
|
AV36-4342-60-60-60- |
|
5 FT. FLOAT SENSOR-TRIPLE POINT |
|
Yes |
|
1,080,000 |
| FN433423 |
|
AV36-4342-72-72-72- |
|
6 FT. FLOAT SENSOR-TRIPLE POINT |
|
Yes |
|
1,112,400 |
| FN433424 |
|
AV36-4342-84-84-84- |
|
7 FT. FLOAT SENSOR-TRIPLE POINT |
|
Yes |
|
1,144,800 |
| FN433425 |
|
AV36-4342-96-96-96- |
|
8 FT. FLOAT SENSOR-TRIPLE POINT |
|
Yes |
|
1,177,200 |
| FN43332 |
|
AU23-4313-12-12-12 |
|
1 FT. ULTRASONIC SENSOR-DUAL POINT |
|
Yes |
|
1,738,800 |
| FN43333 |
|
AU23-4313-24-24-24 |
|
2 FT. ULTRASONIC SENSOR-DUAL POINT |
|
Yes |
|
1,771,200 |
| FN43334 |
|
AU23-4313-36-36-36 |
|
3 FT. ULTRASONIC SENSOR-DUAL POINT |
|
Yes |
|
1,803,600 |
| FN43335 |
|
AU23-4313-48-48-48 |
|
4 FT. ULTRASONIC SENSOR-DUAL POINT |
|
Yes |
|
1,836,000 |
| FN43336 |
|
AU23-4313-60-60-60 |
|
5 FT. ULTRASONIC SENSOR-DUAL POINT |
|
Yes |
|
1,868,400 |
| FN43337 |
|
AU23-4313-72-72-72 |
|
6 FT. ULTRASONIC SENSOR-DUAL POINT |
|
Yes |
|
1,900,800 |
| FN43338 |
|
AU23-4313-84-84-84 |
|
7 FT. ULTRASONIC SENSOR-DUAL POINT |
|
Yes |
|
1,933,200 |
| FN43339 |
|
AU23-4313-96-96-96 |
|
8 FT. ULTRASONIC SENSOR-DUAL POINT |
|
Yes |
|
1,965,600 |
| FN433426 |
|
AU38-4342-12-12-12- |
|
1 FT. ULTRASONIC SENSOR-TRIPLE POINT |
|
Yes |
|
2,019,600 |
| FN433427 |
|
AU38-4342-24-24-24-2 |
|
2 FT. ULTRASONIC SENSOR-TRIPLE POINT |
|
Yes |
|
2,052,000 |
| FN433428 |
|
AU38-4342-36-36-36 |
|
3 FT. ULTRASONIC SENSOR-TRIPLE POINT |
|
Yes |
|
2,084,400 |
| FN433429 |
|
AU38-4342-48-48-48- |
|
4 FT. ULTRASONIC SENSOR-TRIPLE POINT |
|
Yes |
|
2,116,800 |
| FN433430 |
|
AU38-4342-60-60-60- |
|
5 FT. ULTRASONIC SENSOR-TRIPLE POINT |
|
Yes |
|
2,149,200 |
| FN433431 |
|
AU38-4342-72-72-72- |
|
6 FT. ULTRASONIC SENSOR-TRIPLE POINT |
|
Yes |
|
2,181,600 |
| FN433432 |
|
AU38-4342-84-84-84- |
|
7 FT. ULTRASONIC SENSOR-TRIPLE POINT |
|
Yes |
|
2,214,000 |
| FN433433 |
|
AU38-4342-96-96-96- |
|
8 FT. ULTRASONIC SENSOR-TRIPLE POINT |
|
Yes |
|
2,246,400 |
| FN433410 |
|
AZ23-4313-12-12-12 |
|
1 FT. TUNING FORK SENSOR-DUAL POINT |
|
Yes |
|
1,825,200 |
| FN433411 |
|
AZ23-4313-24-24-24 |
|
2 FT. TUNING FORK SENSOR-DUAL POINT |
|
Yes |
|
1,857,600 |
| FN433412 |
|
AZ23-4313-36-36-36 |
|
3 FT. TUNING FORK SENSOR-DUAL POINT |
|
Yes |
|
1,890,000 |
| FN433413 |
|
AZ23-4313-48-48-48 |
|
4 FT. TUNING FORK SENSOR-DUAL POINT |
|
Yes |
|
1,922,400 |
| FN433414 |
|
AZ23-4313-60-60-60 |
|
5 FT. TUNING FORK SENSOR-DUAL POINT |
|
Yes |
|
1,954,800 |
| FN433415 |
|
AZ23-4313-72-72-72 |
|
6 FT. TUNING FORK SENSOR-DUAL POINT |
|
Yes |
|
1,987,200 |
| FN433416 |
|
AZ23-4313-84-84-84 |
|
7 FT. TUNING FORK SENSOR-DUAL POINT |
|
Yes |
|
2,019,600 |
| FN433417 |
|
AZ23-4313-96-96-96 |
|
8 FT. TUNING FORK SENSOR-DUAL POINT |
|
Yes |
|
2,052,000 |
| FN433434 |
|
AZ38-4342-12-12-12 |
|
1 FT. TUNING FORK SENSOR-TRIPLE PT |
|
Yes |
|
2,149,200 |
| FN433435 |
|
AZ38-4342-24-24-24- |
|
2 FT. TUNING FORK SENSOR-TRIPLE PT |
|
Yes |
|
2,181,600 |
| FN433436 |
|
AZ38-4342-36-36-36- |
|
3 FT. TUNING FORK SENSOR-TRIPLE PT |
|
Yes |
|
2,214,000 |
| FN433437 |
|
AZ38-4342-48-48-48- |
|
4 FT. TUNING FORK SENSOR-TRIPLE PT |
|
Yes |
|
2,246,400 |
| FN433438 |
|
AZ38-4342-60-60-60 |
|
5 FT. TUNING FORK SENSOR-TRIPLE PT |
|
Yes |
|
2,278,800 |
| FN433439 |
|
AZ38-4342-72-72-72 |
|
6 FT. TUNING FORK SENSOR-TRIPLE PT |
|
Yes |
|
2,311,200 |
| FN433440 |
|
AZ38-4342-84-84-84 |
|
7 FT. TUNING FORK SENSOR-TRIPLE PT |
|
Yes |
|
2,343,600 |
| FN433441 |
|
AZ38-4342-96-96-96 |
|
8 FT. TUNING FORK SENSOR-TRIPLE PT |
|
Yes |
|
2,376,000 |
| FN956001 |
|
LP95-6001 |
|
Mounting bracket, polyethylene |
|
Yes |
|
43,200 |
| FN951001 |
|
LP95-1001 |
|
Mounting bracket, polypropylene |
|
Yes |
|
43,200 |
| FN401001 |
|
LC40-1001 |
|
Single Sensor Controller for alarms |
|
Yes |
|
410,400 |
| FN47001 |
|
LC41-1001 |
|
Dual Sensor Controller for automatic control |
|
Yes |
|
486,000 |
| FN421001 |
|
LC42-1001 |
|
Three Sensor Controller for automatic control with alarms |
|
Yes |
|
594,000 |
| |
