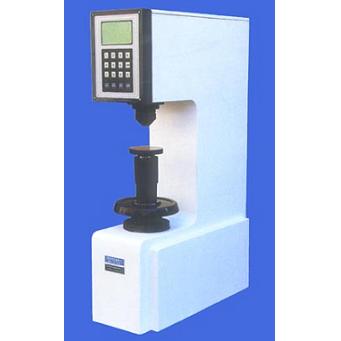

MODEL HB-3000C ELECTRONIC

BRINELL HARDNESS TESTER

Features:

   . The system will acquiesce all the parameters of last

     measurement after starting up.

   . Automatic protections are realized when over loading

     and position exceeding.

   . The operating functions are quick and convenient. The

     operating system can be changed between Chinese and

     English.

   . There are no weights in this tester and the test force

     is applied by electric power.

Specifications

   Measuring range: 4-450HBS, 4-650HBW

   Test force: 612.9、980.7、1225.9、1838.8、2451.8、4903.5、

               7355.3、9807、14710.5、29421Ｎ

             （62.5、100、125、187.5、250、500、750、1000、

                1500、3000kgf)

   Max. height of test piece: 240mm

   Depth of throat: 180mm

   Power supply: 220V AC or 110V AC, 50/60Hz

   Dimensions: 630 x 250 x 1000mm

   Weight: Approx. 250kg

Main accessories

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Steel ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each

   Brinell standardized block: 2 pcs.

   20X Readout microscope: 1 pc.
