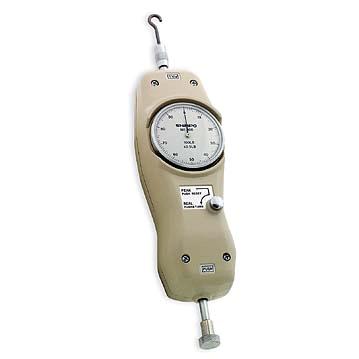

WG513101 Mechanical Force Gauge

제조사 : DAVIS
제품번호:WG513101
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The MF gauges are accurate to ±0.2% of full scale, plus a diecast aluminum housing for added protection
The MF series mechanical force gauge is ideal for measuring push/pull forces in quality control/material testing, manufacturing assembly, maintenance and inspection. No batteries are required - the calibration is accomplished by a set of precisely matched springs which are overload protected to 165 pounds! The MF mechanical force gauge can be used anywhere without "recharging."

The peak mode features an easy push-button reset. This is especially helpful for doing repetitive testing in an assembly line or quality control lab. The real time mode allows you to see force changes as they occur. Since the gauge is mechanical, the response time is immediate.

The MF gauges are accurate to ±0.2% of full scale, plus a diecast aluminum housing for added protection. All gauges come complete with carrying case and attachments. Ergonomically designed for handheld use, they can also be used with the optional handle (great for loads over 15 lbs) or mounted to a test stand or fixture.


Features
  • Rugged and economical
  • Measure tension and compression forces
  • Real time mode shows force changes as they occur
  • PEAK mode captures peak forces
  • No dead batteries to worry about
  • Easily mounts to a test stand
  • Accurate to ±0.2% of full scale
  • Optional handle assembly

CAT NO. MODEL DEscRIPTION AVAIL PRICE
WG513101   MF-2   Mechanical Force Gauge, Capacity: 2 lb, Dial Graduation: 0.01 lb   Yes   1,026,000
WG513102   MF-5   Mechanical Force Gauge, Capacity: 5 lb, Dial Graduation: 0.025 lb   Yes   1,026,000
WG513103   MF-10   Mechanical Force Gauge, Capacity: 10 lb, Dial Graduation: 0.05 lb   Yes   1,026,000
WG513104   MF-20   Mechanical Force Gauge, Capacity: 20 lb, Dial Graduation: 0.1 lb   Yes   1,026,000
WG513105   MF-30   Mechanical Force Gauge, Capacity: 30 lb, Dial Graduation: 0.2 lb   Yes   1,026,000
WG513106   MF-50   Mechanical Force Gauge, Capacity: 50 lb, Dial Graduation: 0.25 lb   Yes   1,026,000
WG513107   MF-100   Mechanical Force Gauge, Capacity: 100 lb, Dial Graduation: 0.5 lb   Yes   1,026,000
SHMFP01   MFP   OPTIONAL OPTIONAL HANDLE FOR Mechanical Force Gauges   Yes   216,000
