Use the Data Acquisition software to collect and display real time data.
Use the Data Acquisition software to collect and display real time data. Calculate max/min, average, and standard deviation. Use the buttons on the spreadsheet to operate the gauge from your computer.
DB data buttons work with the software to automate data collection. Enter peak measurements into the spreadsheet and ‘zero’ the gauge with a touch of the button. Minimize computer time and mouse usage.
Features

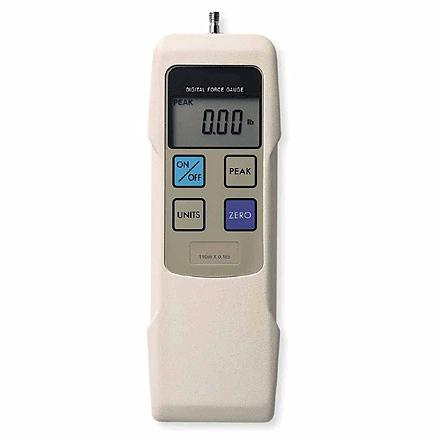

Best value digital force gauge with capacity up to 700 lbs push/pull)
Accuracy ±0.2% ±1 LSD
RS-232C, Digimatic and analog outputs
Overload capacity 200% F.S.
Ergonomic, heavy-duty metal construction
lb, kg, and Newtons (selectable)
Overload alarm, low battery display indicator
Runs on internal NiCad batteries or AC adapter
Real time and peak mode (selectable)
Tare function
Full set of accessories, AC charger/adapter and carrying case
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
IM28427
DPS-0.5
8.819 oz/250.0 g/2.452 N Capacity Digital Force Guage
Yes
1,285,200
IM28428
DPS-1
17.64 oz/500.0 g/4.903 N Capacity Digital Force Guage
Yes
1,285,200
IM28429
DPS-4
4.409 lb/2.000 kg/19.61 N Capacity Digital Force Guage
Yes
1,285,200
IM28430
DPS-11
11.02 lb/5.000 kg/49.03 N Capacity Digital Force Guage
Yes
1,285,200
IM28431
DPS-44
44.09 lb/20.00 kg /196.1 N Capacity Digital Force Guage
Yes
1,285,200
IM28432
DPS-70
70.2 lb/50.00 kg/490.3 N Capacity Digital Force Guage
Yes
1,285,200
IM28433
DPS-220
220.5 lb /100.0 kg/980.6 N Capacity Digital Force Guage
Yes
1,825,200
IM28434
DPSH-440
441.0 lb/200.0 kg/1960 N Capacity Digital Force Guage
Yes
2,365,200
IM28435
DPSH-700
702 lb/500.0 kg/4900 N Capacity Digital Force Guage
Yes
3,186,000
IM28436
SW-1
Data Acquisition Software
Yes
429,840
IM28437
DB-1
Data Button
Yes
313,200
IM28438
CB-203
RS-232 Cable
Yes
162,000
IM28469
OH-1
OPTIONAL Handle FOR Digital Force Gauges
Yes
183,600
