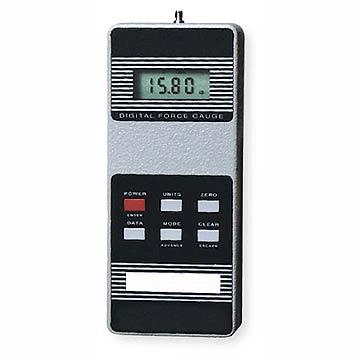

MK2124 0.25 x 0.0002 lb Digital Force Gauge

제조사 : DAVIS
제품번호:MK2124
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Reversible aluminum housing for hand-held use or stand mounting.Three units of measurement: lb,kg(g),N
Features
  • Reversible aluminum housing for hand-held use or stand mounting
  • Three units of measurement: lb, kg(g), N
  • Programmable initial status of units and mode of operation
  • Programmable automatic shutoff
  • Optional RS-232, Mitutoyo and analog outputs
  • Automatic peak memory
  • Push-button calibration
  • Battery or AC operation

SPECIFICATIONS

Accuracy

±0.3% of full scale ±1 digit
Display rate 2.5/sec. 30/sec in peak mode
Battery life 8 -10 hours of continuous use
RS-232 (Optional) Fully configurable up to 9600 baud.
Sensor deflection 0.010 [0.25 mm] deflection at full load
Safe overload 150% of full range. Display shows "----" at 70% and above

Weight
(gauge only)

0.95 lb [0.4 kg]
Display 4fi-digit LCD 0.3" [7.6 mm] high. Indicators for low battery, units and mode of operation
Sampling rate 30 readings per second
Power AC or rechargeable battery with IPM, a 3-step Intelligent Power Management system that warns the user via "LO BAT" indicator and then will shut off the gauge
Mitutoyo output (Optional) Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog output (Optional) ±1 VDC ±0.25% of full scale at capacity.
Positive for compression, negative for tension
Included accessories Hook, flat

CAT NO. MODEL DEscRIPTION AVAIL PRICE
MK2124   EG025   0.25 x 0.0002 lb Digital Force Gauge   Yes   1,717,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2125   EG05   0.5 x 0.0005 lb Digital Force Gauge   Yes   1,717,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2113   EG2   2 x 0.002 lb Digital Force Gauge   Yes   1,501,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2126   EG5   5 x 0.005 lb Digital Force Gauge   Yes   1,501,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2127   EG10   10 x 0.01 lb Digital Force Gauge   Yes   1,501,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2128   EG20   20 x 0.02 lb Digital Force Gauge   Yes   1,501,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2115   EG50   50 x 0.05 lb Digital Force Gauge   Yes   1,501,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2116   EG100   100 x 0.1 lb Digital Force Gauge   Yes   1,501,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2129   EG200   200 x 0.2 lb Digital Force Gauge   Yes   1,717,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2130   EG500   500 x 0.5 lb Digital Force Gauge   Yes   1,717,200
Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above.
MK2131   EGRS   OPTIONAL Output (RS-232, Mitutoyo, analog, at time of order) FOR EG Digital Force Gauges   Yes   324,000
