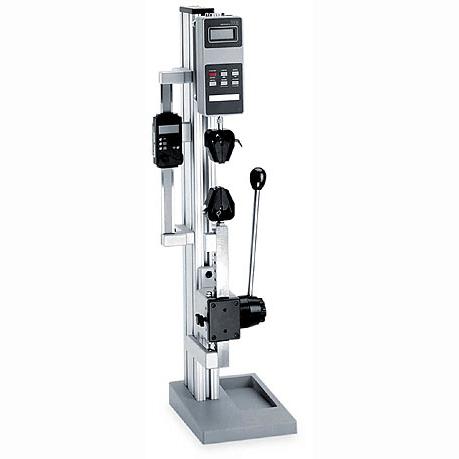

MK307 Test stand, lever operated, 750lb. Vertical

제조사 : DAVIS
제품번호:MK307
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Loading lever can be positioned in 30° increments for ease of operation,Adjustable travel stops
Features
  • Small size
  • Loading lever can be positioned in 30° increments for ease of operation
  • Adjustable travel stops
  • Adjustable wear plates for smooth, precise motion
  • Mounting holes for bench mounting
  • Frictional low force brake
  • Precision ground rack and pinion mechanism
  • Optional digital travel display

SPECIFICATIONS

Load capacity

750 lb (3.3 kN)
Maximum travel 6", 2.75" with stops (152 mm, 69.85)
Dimensions 6"W x 8"D x 26"H (152 mm x 197 mm x 645 mm)
Travel display Optional
Loading method/rate Rack & pinion / 3" (76mm) per rev.
Horizontal mount Optional
Weight 16 lb (7.26 kg)
Included accessories Wrenches, hooks, thread adapter, compression plate, gauge hardware

CAT NO MODEL DEscRIPTION AVAIL PRICE
MK307   TSA   Test stand, lever operated, 750lb. Vertical   Yes   1,998,000
MK308   TSAH   Test stand, lever operated, 750lb. Horizontal   Yes   1,998,000
MK309   TSA001   Digital travel display   Yes   1,242,000
MK310   MK310   Horizontal wall mounting kit   Yes   378,000
