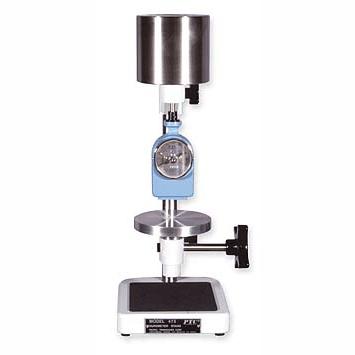

PZ472 Constaloader Test Stand

제조사 : DAVIS
제품번호:PZ472
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Deadweight stands use 400G, 1KG, or 5KG weights as recommended by ASTM D2240 specifications.
The Deadweight stands use 400G, 1KG, or 5KG weights as recommended by ASTM D2240 specifications. The load cell stand approximates both the 1K & 5Kg weights using calibrated springs.

ASTM D2240 states that better repeatability may be obtained by using mass centered on the axis of the indenter. Our stands are designed to give the user maximum repeatability.

The model 472 ConstaLoader™ features an oil-less airpot that gives a smooth, controlled descent for making the most accurate readings with an ASTM Type A, B, or O Durometer. It also has an adjustable table that can be locked in place for testing materials with nonparallel surfaces.

Features
  • Deadweight Stands
  • Load Cell Stand
  • ConstaLoader™ Controlled Descent Stand
  • Maximize Durometer Repeatability
  • Test materials up to 5" high, 3" high for ConstaLoader™

CAT NO. MODEL DEscRIPTION AVAIL PRICE
PZ472   472-1   CONSTALOADER TEST STAND (1 KG)TYPE A, B & O   Yes   3,013,200
PZ4722   472-2   CONSTALOADER TEST STAND (1 KG)TYPE A,B&O(PENCIL)   Yes   3,013,200
PZ473   473   DEADWEIGHT STAND (1 KG & 5 KG)TYPE A,B,C,D,DO&O   Yes   1,717,200
