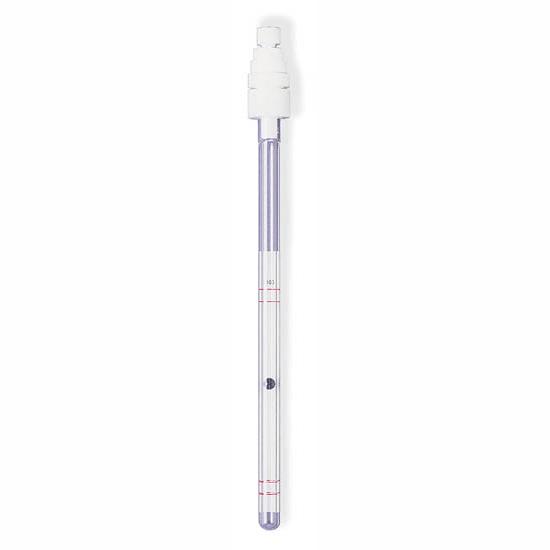

BN2100 VISCOMETER (0.2 TO 10cp)

제조사 : DAVIS
제품번호:BN2100
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

To take a reading, invert the tube, allowing the ball to enter the Teflon® screw.
To take a reading, invert the tube, allowing the ball to enter the Teflon® screw. Next, restore the tube to normal position. Finally, turn the knob to release the ball, and measure the time of descent with a stop watch. Reproducibility with good technique varies from 0.2 to 1.0%, depending upon time of descent. The ball-release device is sealed with a Viton® O-ring. Other plastic parts are made of corrosion-resistant Delrin. The ball moves against a white background with easy-to-read red reference lines.

Features
  • Three ranges-up to 2000 centipoise
  • Simple to use; no complicated electronics, no calibration Highly accurate, available with exact viscometer constant
  • Highly accurate, available with exact viscometer constant
  • Two high-precision balls (glass and stainless steel) supplied with each instrument
  • Optional tantalum ball, effectively doubles viscosity range
  • Economically priced


CAT NO. MODEL DEscRIPTION AVAIL PRICE
BN2100   WD-08702-50   VISCOMETER (0.2 TO 10cp)   Yes   313,200
BN2200   WD-08702-00   VISCOMETER (2 TO 100cp)   Yes   437,400
BN2300   WD-08702-10   VISCOMETER (20 TO 1000cp)   Yes   437,400
BN2400   GF-1332-T   OPTIONAL TANTALUM BALL; EFFECTIVELY DOUBLES VISCOSITY RANGE FOR Falling Ball Viscometer   Yes   114,048
