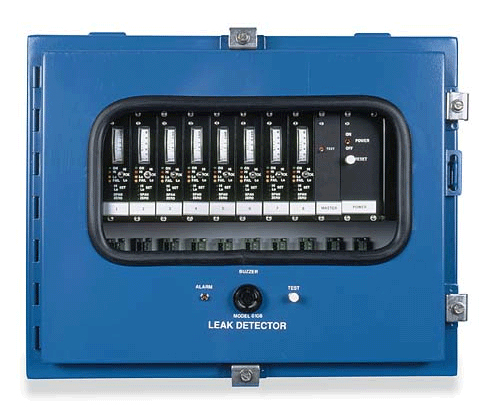

The detector system includes sensor, and the controller in the NEMA type 4 enclosure for indoor
The detector system
includes sensor, and the controller in the NEMA type 4 enclosure for
indoor and outdoor installations. The controller includes the individual
module, master module, power module, and/or blank module.
Standard
Individual module includes Power Green LED, Alarm Red LED, Fail Yellow
LED and Meter (ppm or % LEL). The Master Module includes Test Switch.
The Power module includes Power and Reset Switches.
Each channel has
50 feet 3 conductor wire cable and explosion-proof housing for sensor
connection.
When ordering
please specify gas type. Please inquire for NIST certification.
* Note: For Freon and Sulfur Dioxide monitoring systems, add a sensor
option for each system channel.
CAT
NO.
MODEL
DEscRIPTION
AVAIL
PRICE
UP7901900
S201R
1-CHANNEL GAS
DETECTOR X201 C/RB
Yes
3,780,000
UP7901901
S202R
2-CHANNEL GAS
DETECTOR X202 C/RB
Yes
5,508,000
UP7901902
S203R
3-CHANNEL GAS
DETECTOR X203 C/RB
Yes
7,214,400
UP7901903
S204R
4-CHANNEL GAS
DETECTOR X204 C/RB
Yes
8,856,000
UP7901904
S205R
5-CHANNEL GAS
DETECTOR X205 C/RB
Yes
11,232,000
UP7901905
S206R
6-CHANNEL GAS
DETECTOR X206 C/RB
Yes
12,938,400
UP7901906
S207R
7-CHANNEL GAS
DETECTOR X207 C/RB
Yes
14,644,800
UP7901907
S208R
8-CHANNEL GAS
DETECTOR X208 C/RB
Yes
16,351,200
UP7901908
S209R
9-CHANNEL GAS
DETECTOR X209 C/RB
Yes
18,424,800
UP7901909
S210R
10-CHANNEL
GAS DETECTOR X210 C/RB
Yes
20,142,000
UP79019101
9200-10
OPTIONAL
FREON REPLACEMENT SENSOR FOR
Multi-Channel Gas Leak Detector / Alarm
Yes
583,200
UP79019102
3200-10
OPTIONAL
SO2 REPLACEMENT SENSOR FOR
Multi-Channel Gas Leak Detector / Alarm
Yes
583,200
UP790912
0-1VDC OR
4-20mA OUT
OPTIONAL
SIGNAL OUTPUT (PER CHANNEL) *SPECIFY 0-1VDC
OR 4-20MA OUT* FOR Multi-Channel Gas Leak Detector
/ Alarm
Yes
216,000
