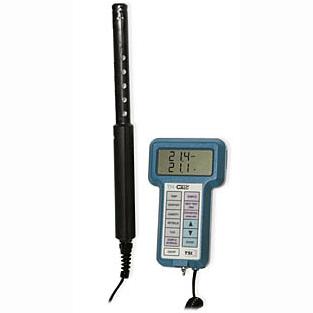

IAQ-Calc™ Meters are exceptional instruments for investigating and monitoring Indoor Air Quality (IAQ).
IAQ-Calc™ Meters are exceptional instruments for investigating and monitoring Indoor Air Quality (IAQ). The Model 8732 is a cost-effective meter for CO2 measurements. To monitor indoor air quality conditions, the Models 8760 and 8752 simultaneously measure and data log multiple parameters. The Model 8760 measures CO2, temperature, humidity, and calculates dewpoint, wet bulb temperature, absolute humidity, and % outside air. The Model 8762 adds CO
Features
Stable, low drift NDIR CO2 sensor
Sampling function records multiple point measurements
Optional portable printer provides hard copy documentation
Additional Features and Benefits of the Models 8760 and 8762
Temperature and relative humidity measurements are instrumental for determining thermal comfort levels
Calculates % outside air from either CO2 or temperature readings
Direct calculation of dew point, wet bulb temperature, and absolute humidity —no psychrometric chart needed
Electro-chemical CO sensor for measurements made at outdoor air intakes, HVAC systems and parking garages (Model 8762 only)
2-line display showing multiple parameters at the same time
Optional detachable secondary temperature sensor
Data Logging Capabilities of the Models 8760 and 8762
Data logging ability allows user to log 14,000 samples with a time and date stamp
Simultaneously records all parameters available
Continuous data logging for full-cycle monitoring and trend analysis
Data can be reviewed on-screen, printed or downloaded to a computer for easy report generation
TSI LOGDAT™ downloading software permits easy transfer of data to a computer
LOGDAT™ Companion Excel® Macro automatically graphs your data
Statistics function displays average, maximum and minimum values, and the number of recorded samples
Applications
Measure IAQ and comfort conditions in schools, offices and other indoor environments
Investigate Sick Building Syndrome
Comply with regulations and guidelines
Search for building-related illnesses
Verify building HVAC system performance
Examine building IAQ conditions to optimize worker productivity
