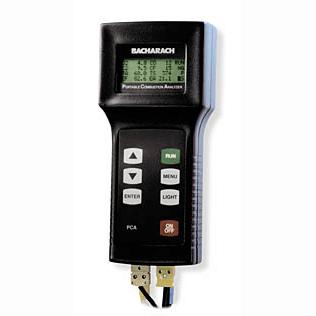

BA248040 PCA 10 Portable Combustion Analyzer

제조사

DAVIS

제품번호

BA248040

시중가격

원

판매가격

원

포인트

점

수량

개

■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

An affordable, easy to use instrument for CO safety and efficiency testing of combustion applications.

Portable Combustion Analyzer (PCA)
An affordable, easy to use instrument for CO safety and efficiency testing of combustion applications.
An affordable, easy to use and reliable instrument for CO safety and efficiency testing of combustion applications. The new PCA is the perfect tool for every service technician in determining safety and efficiency of all combustion appliances. It has a large LCD display with backlight that shows eight different combustion values simultaneously. The PCA will directly measure and display flue gas O2, temperature, CO (option) while computing and displaying combustion efficiency, excess air, CO2 and CO air free. Up to 10 sets of tests can be stored and downloaded into an infrared printer for a permanent record. The PCA includes a powerful industrial pump, probe and hose assembly with a filter and water trap, four (4) AA batteries, user guide and an instruction manual which are all packaged into a custom carrying case... just turn it on and go!

Applications
The new PCA is the perfect tool for service technicians who need to determine safety and/or efficiency in combustion applications. Residential furnaces, hot water heaters, boilers and ovens are just a few typical areas of use. The device can also be used in gas utility and weatherization applications where indoor air safety is a concern. By utilizing the optional printer, you can provide hard-copy evidence of the need for repairs or replacement of your customer’s appliances. They will appreciate a record of your tests

Only the PCA measures CO air free... Here’s what that means to you
The CO air free unit of measurement is computed by the PCA from the CO and O2 measurements. This calculated value is a concept for determining the amount of CO present in a sample by compensating for the amount of excess air provided by the burner. In other words, the CO air free measurement eliminates the excess air dilution caused by primary and secondary air. American National Standards Institute (ANSI Z21) specifies the use of PPM CO air free as a unit of measure when testing certain appliances. The following are the ANSI standards 200 PPM CO air free on an unvented space heater; 400 PPM CO air free on furnace flue gas; and 800 PPM CO air free on an unvented gas oven.

Our most important goal is to meet the needs of you, our customer. We listened to you and developed the PCA around your needs and requirements. We also contacted several HVAC associations including ACCA, RSES, NAOHSM and others for their input. As a result, product features were incorporated into the design of the PCA to meet or exceed your expectations. Some of the features include a simple keypad for user-friendly operation, an easy to read display showing eight different values simultaneously, an optional infrared printer to document test results and a rugged, lightweight case for added versatility during operation and transport.

The PCA directly measures and displays:

Oxygen (O2)
Carbon Monoxide (CO)
Carbon Dioxide (CO2)
CO air free
Draft
Ambient Temperature
Combustion Efficiency
Excess Air
Stack Temperature

Features

Directly measures and displays flue gas O2, temperatures, Draft and CO
Calculates and displays combustion efficiency, excess air, CO2 and CO air free
Large display shows eight (8) different values simultaneously with backlight
Long life, disposable batteries with an optional 120 VAC power supply
Two year warranty on instruments and sensors
Draft and CO measurements (optional)
Eight (8) North American fuels
Optional probes for a variety of applications
Dated results can be recalled to the display screen at any time
Separate temperature sensor for combustion air

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

BA248040

0024-8040 (PCA 10)

PCA 10 PORTABLE COMBUSTION ANALYZER

Yes

2,268,000

Oxygen measurement, comes complete with carrying case, probe and hose assembly, factory calibrated & installed sensor(s), instruction manual, user guide, batteries & 2 year warranty.

BA248042

0024-8042 (PCA 20)

PCA 20 PORTABLE COMBUSTION ANALYZER

Yes

3,261,600

Oxygen & CO measurement, comes complete with carrying case, probe and hose assembly, factory calibrated & installed sensor(s), instruction manual, user guide, batteries & 2 year warranty.

BA248043

0024-8043 (PCA 25)

PCA 25 PORTABLE COMBUSTION ANALYZER

Yes

3,682,800

Oxygen, CO2 and draft measurement, comes complete with carrying case, probe and hose assembly, factory calibrated & installed sensor(s), instruction manual, user guide, batteries & 2 year warranty.

BA240788

0024-0788

OPTIONAL REPLACEMENT OXYGEN SENSOR FOR PCA SERIES FOR Bacharach Portable Combustion Analyzer

Yes

313,200
