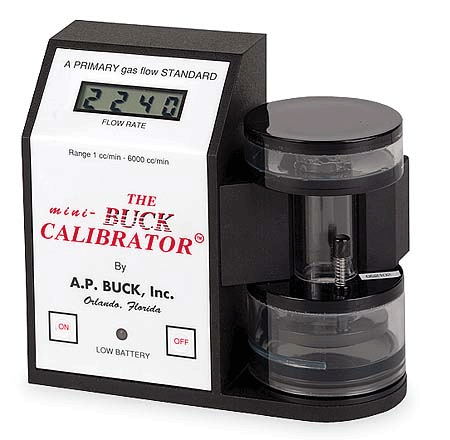

AP1081 mini-Buck™ Air Flow Calibrator

제조사 : DAVIS
제품번호:AP1081
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The mini-Buck™ Calibrators are microprocessor-controlled and provide accurate
The mini-Buck™ Calibrators are microprocessor-controlled and provide accurate and instant readout of flow rate. Since the flow rate is calculated electronically, accurate measurements at any altitude are possible within ±0.5%. With the soap film solution contained in a spill-resistant flow cell, the mini-Buck is portable for field operation and ready to use with just a push of a button.

The mini-Buck Calibrators use an established and highly accurate method to measure th flow rate of air sampling pumps. The calibrator is connected to the pump or other flow device by tubing. When the flow is activated, a thin soap film travels upward within a small, precision flow cell. As the soap film passes two infrared sensors, the time spent between the sensors is fed to a microprocessor, which uses this data to calculate the flow rate.

The mini-Buck™ Primary Flow Calibrator is more than a calibrator for vacuum and pressure sampling pumps. It's also suitable for verifying rotameters, setting instrument flow panels, and calibrating gas chromatographs and other analytical instrumentation.


Features
  • Primary flow gas measurements, NIST traceable with accuracy of ±0.5% of any display
  • Suitable for verifying vacuum and pressure applications
  • Field portable, rechargeable NiCad batteries provide up to 8 hours use
  • Auto shut off batter saver
  • One button control
  • Microprocessor controlled
  • Instant readout of flowrates
  • Air Flow Calibrators Include: Calibrator, AC adapter-charger, Soap film solution, Dispenser bottle, Operating manual

Three Models give a wide choice of operating ranges:
  • Model M-5: 1 to 6000 cc/min
  • Model M-30: 100 cc to 30 LPM
  • Model M-1: 0.1 to 300 cc/min

CAT NO. MODEL DEscRIPTION AVAIL PRICE
AP1081   M-1(APB-801000)   mini-Buck™ Air Flow Calibrator, 0.1 to 300 cc/min   Yes   1,933,200
AP1085   M-5 (APB-805000)   MINI-BUCK CALIBRATOR(1-6000cc)   Yes   1,933,200
AP1086   M-30 (APB-803000)   MINI-BUCK CALIBRATOR/100cc-30L   Yes   2,365,200
AP1087   APB-108000   OPTIONAL CARRYING CASE FOR MINI-BUCK CALIBRATORS FOR Air Flow Calibrators   Yes   270,000



AP1088   APB-107030   OPTIONAL CALIBRATOR SOAP SOLUTION, 8oz.BOTTLE FOR Air Flow Calibrators   Yes   43,200



AP1089   APB-108010   OPTIONAL AC ADAPTER-CHARGER, 70V FOR Air Flow Calibrators   Yes   75,600
AP1090   APB-108012   OPTIONAL AC ADAPTER-CHARGER, 220V FOR Air Flow Calibrators   Yes   162,000
NISTFL53   NISTFL53   OPTIONAL NIST TRACEABLE CERT W/DATA FOR FOR Air Flow Calibrators   Yes (Add 3 Days to Ordered Item)   486,000



NISTFLQ53   M-30 (APB-803000)   OPTIONAL 2 Year NIST Traceable Certificate with Data FOR Air Flow Calibrators   Yes (Add 3 Days to Ordered Item)   727,920
