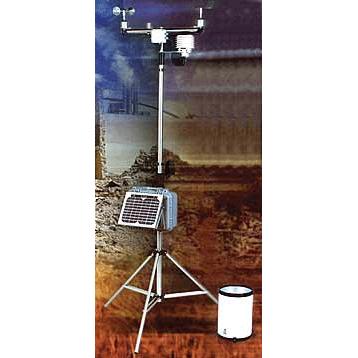

CEL18700 Standard Weather System

제조사 : DAVIS
제품번호:CEL18700
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Due to increasing environmental legislation world wide, industrial activities such as construction, demolition
Due to increasing environmental legislation world wide, industrial activities such as construction, demolition and land remediation now have a requirement to monitor local meteorological conditions. Once on site, the portable NOMAD monitoring station can be deployed and collecting data in less than 5 minutes. Disassembly is just as quick. It can be used to monitor, measure and record temperature, relative humidity, pressure, wind speed and direction, solar radiation and rainfall. Up to 4 additional sensors can be added to the system. A “Sensor extension unit” attaches directly to the tripod. Additional sensors for soil temperature, leaf wetness, grass temperature plus specific devices such as SOX or NOX can be added to the standard unit. There are 3 system components: tripod assembly, data-logger in an IP67 enclosure (with solar panel and rechargeable battery), and a detachable sensor array. The NOMAD includes a barometric pressure sensor and a tipping bucket rain gauge.

Once assembled, the NOMAD automatically begins recording data. The NOMAD will record 149K data sets equating to over 3 months logging (at 1 minute intervals). There are several options for downloading the data: On-site with a laptop PC and/or direct line hook-up (1,500 ft. max. cable length); Remote using low power radios (transmission up to 3000 feet); and for Global collection, GSM or PSTN modems are supported. Alarm functions may be configured to alert operators using the SMS service on suitably equipped cell phones.

Features
  • apid system deployment - portable and lightweight construction (only 28.5 lbs.)
  • > 3 months of Data-logging memory (149K data sets)
  • Protective carrying bags standard – system is portable by one person
  • CF slot for extended monitoring applications (up to 256 Mb)
  • Solar panel charger allows for extended operation
  • Telemetry options include: RS232, RS485 or low power radio system
  • Complete with software for real time & historical analysis
  • Directional compass and ground anchors included

Applications
  • Environmental Consulting; Site boundary monitoring; Landfill & agrochemical trial sites
  • Emergency Services; Military Services; Geotechnical / Hydrological Field Studies
  • Sports Facilities; Maritime Ports and Harbors

SPECIFICATIONS

Sensus Data logger

Internal memory 512K (expandable to 256 Mb on CF card)
Number of channels 32 (11 max on NOMAD systems)
Logging interval Adjustable from 5 seconds
Display 2 line by 20 characters LCD
Communications RS232 & RS485
Sensors Transducer Resolution Accuracy
Wind Speed Optical encoder  7.84cm  ± 0.3 ms-1 below 3 ms-1
± 1% over 3ms-1
Wind Direction GMR 1° ± 2°
Temperature PRTD   ±0.3°C @ 0°C ±0.55°C @50°C
Pressure 800-700 Mb
silicon bridge
<1mb Temp drift:typ.<0.15mb/°C
Solarimeter Silicon Detector 0.1 Wm-2 —
Rainfall Tipping Bucket Rain gauge ±1% @ 1 Liter/Hour
General specs
Operating Temperature -15°C to +70°C (5 to 158°F)
Dimensions
Deployed on site Sensors - 6ft above ground
Tripod 3 ft diameter
In 3 carrying bags Case 1: 37" x 12"
Case 2: 14" x 15" x 15"
Case 3: 14" x 14" x 10"

CAT NO. MODEL DEscRIPTION AVAIL PRICE
CEL18700   187000D   Standard Weather System with 7 standard sensors   Yes   Call 031-777-1588
CEL187056   187056D   Wind System for wind speed and direction information only   Yes   10,789,200
CEL187057   187057C   Sensor extension unit   Yes   421,200
CEL120620   120620B   Soil temperature sensor with 10 ft cable   Yes   378,000
CEL120823   120823B   Leaf wetness sensor with 10 ft cable   Yes   788,400
CEL120680   120680B   Grass temperature sensor with 10 ft cable   Yes   421,200
