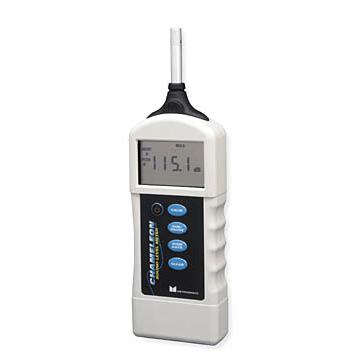

QS139340 Sound Level Meter

제조사 : DAVIS
제품번호:QS139340
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Chameleon is a single instrument that adapts to the needs of both novice and advanced users
The Chameleon is a single instrument that adapts to the needs of both novice and advanced users. Every Chameleon comes standard with Feature Pack 1, providing the most basic functions of a sound level meter. Additional Feature Packs may be purchased separately to change the Chameleon’s functionality.

Operational in 5 easy steps in 5 minutes or less

  1. Turn ON — Press the ON/OFF button
  2. Calibrate — Press the CALIB button, insert the microphone into the calibrator, turn the calibrator on, let the displayed reading stabilize and press the CALIB button a second time. Remove the calibrator.
  3. Collect Data — Press the RUN/PAUSE button to begin storing data. Press the RUN/PAUSE button a second time to stop storing data.
  4. View Readings — Press the VIEW DATA button repeatedly to scroll through measurement data.
  5. Clear Memory — Press the CLEAR button. CLR appears on the display. Press the CLEAR button a second time and the memory is cleared.

Pack 2 Measurement Data
  • SPL • Lmin • Lmax • Lpeak • Battery Voltage • Lavg (Leq) • Elapsed Time

Pack 3
  • SPL • Lmin • Lmax • Lpeak • Battery Voltage • Lavg (Leq) • Elapsed Time • Amplitude Distribution

Pack 4
  • SPL • Lmin • Lmax • Lpeak • Battery Voltage • Lavg (Leq) • Elapsed Time • Time History

Set-up Options - Packs 2, 3 & 4
  • Fast, Slow or Impulse
  • A or C Weighting
  • Calibration Level
  • 3, 4 or 5 dB doubling


CAT NO. MODEL DEscRIPTION AVAIL PRICE
QS139340   SLM1-MK   SOUND LEVEL MTR KIT W/CAL CASE, WIND SCREEN   Yes   1,890,000
QS139341   PACK 2   OPTIONAL SOFTWARE UPGRADE W/INTERFACE CABLE FOR Chameleon Sound Level Meter   Yes   613,440



QS139342   PACK 3   OPTIONAL SOFTWARE UPGRADE W/INTERFACE DATALOGGING FOR Chameleon Sound Level Meter   Yes   840,240



QS1393421   PACK 4   OPTIONAL SOFTWARE UPGRADE W/INTERFACE TIME HISTORY DATLOG FOR Chameleon Sound Level Meter   Yes   840,240



QS139343   2135-2030-04   OPTIONAL WINDOWS SOFTWARE FOR Chameleon Sound Level Meter   Yes   252,720
