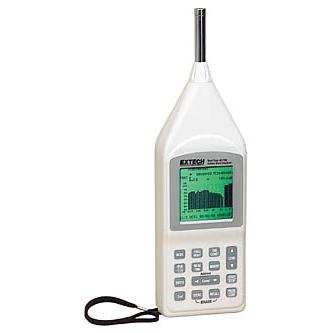

EH407790 Octave Band Sound Analyzer

제조사 : DAVIS
제품번호:EH407790
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Type 2 integrating sound level meter with Octave and 1/3 Octave Band Real Time display
Type 2 integrating sound level meter with Octave
and 1/3 Octave Band Real Time display

Features
  • Wide 100dB range of 30 to 130dB
  • 160 x160 dot matrix backlit LCD displays Leq, LE, Lmax, Lmin and Lp
  • Built-in memory stores up to 12,280 records in SLM mode and 1024 data points in 1/1 or 1/3 octave mode
  • Stored data can be easily transferred to a PC via RS-232 interface and analyzed using software & cable provided
  • A, C and Flat weighting with Fast or Slow response
  • 25Hz to 10kHz frequency response
  • Meets ANSI and IEC Type 2 standards
  • Internal self test when powered ON
  • Detachable 0.52"(13.2mm) diameter condenser microphone and Tripod mount provided on rear
  • Analog AC/DC recorder output
  • Real time clock with Year, Month, Day, Hour, Minute and Second display
  • Optional microphone extension cable for measurements in enclosures and other remote locations (407764-EXT)
  • Complete with microphone wind cover, PC software on CD, Serial cable, four type C size batteries, adjustment screwdriver, 120VAC adaptor and carrying case

Applications
  • Real time analysis of noise from any source such as machinery or vehicles
  • Monitor office or plant noise and store data for later reference and analysis
  • Maintain noise level statistics for internal and external audits
  • Perform machinery noise monitoring or use for noise reduction programs


CAT NO. MODEL DEscRIPTION AVAIL PRICE
EH407790   407790   Octave Band Sound Analyzer   Yes   7,557,840
