High performance electronics guarantee a wide range of easy to use functions for virtually any application

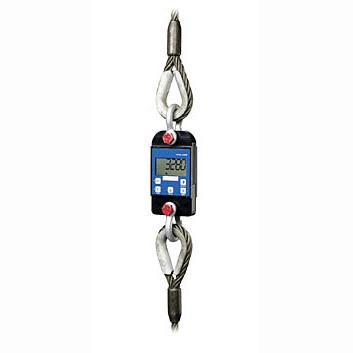

The TL6000 is the industry standard bearer delivering capacities from 1,000 lbs to 50 tons in al ight weight compact design. High performance electronics guarantee a wide range of easy to use functions for virtually any application
The state of the art 14 bit A/D microprocessor delivers more features and functions to ensure the TL6000 is a versatile yet easy to use tool. Everything is powered by two (9V) alkaline batteries that provide more than 500 hours of continuous use to ensure you are virtually never without power. No other tension link offers these all encompassing features in one complete unit.
Features
Readings are easily viewed via the jumbo sized 1.2 inch/30 mm high characters
All models capable of displaying up to five digits weights for high capacity weighing.
Nine large display icons identify the mode or function.
Standard controls, sealed in a mechanical membrane keypad for trouble free operation, include On/Off, Mode, Zero, Peak and Tare.
Readings can be displayed in lb/kg/Tons/Metric Tons and dekaNewtons. from 1,000 to 100,000 lbs
Two programmable set points alert the user when loads reach the preset levels.
Peak Hold updates up to fifty times per second for fast and immediate notification of maximum loads and breaking points.
Tare range is 100% of unit’s capacity
Adjustable sample rates enable you to slow down or speed up the weighing process for greater stability of readings.
Programmable sleep mode adjusts battery consumption to meet your individual needs.
Adjustable auto shut off to conserve battery life
Serial data output via RS232 or RS485 in continuous or demand mode
Adjustable baud rate from 30-19,200 interfaces with almost any remote device
Error messages for fast and easy troubleshooting. Eliminates guess work when determining nature of problem.
Display update rate can be programmed for most any application
Low battery indication
Top and Bottom shackles (Crosby or equal)
Portable carrying case (waterproof)
Single display remote control (TL-IND1 hardwire or TL-RF1 wireless)
Tandem display remote control (TL-IND2 hardwire or TL-RF2 wireless)
Set point relay output control kit
AC or DC power input (specify power requirements)
Analog output
Multi-load sensor input and summing
Set point audible alarm
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
IP420101
TL6000-1000
HIGH CAP DIG TENSIONLINK SCALE1000LB/500KGS
Yes
2,484,000
IP420103
TL6000-5000
HIGH CAP DIG TENSIONLINK SCALE5000LB/2500KGS
Yes
2,797,200
IP420105
TL6000-25000
HIGH CAP DIG TENSIONLINK SCALE25000LB/12500KGS
Yes
3,877,200
IP420107
TL6000-100,000
HIGH CAP DIG TENSIONLINK SCALE100,000LB/50,000KGS
Yes
6,804,000
IP420108
TL5000
OPTIONAL 500-5000 LB (3 1/4 TON) (PAIR)SHACKLE 3LB/1.4KG FOR High Capacity Digial TensionLink Scales
Yes
311,040
IP42070
TL-25000
OPTIONAL TL6000 TENSIONLINK SCALE 25,000LB SHACKEL(PR) TL-25000 FOR High Capacity Digial TensionLink Scales
Yes
1,477,440
IP420112
TL-100000
OPTIONAL TL6000 TENSION LINK SCALE 100,000LB SHACKLE(PR)TL-100000 FOR High Capacity Digial TensionLink Scales
Yes
4,380,480
