BD121136 Cable Height Meter

Á¦Á¶»ç : DAVIS
Á¦Ç°¹øÈ£:BD121136
½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

The instruments are designed to address specific measuring requirements on cables up to 75 feed (23 m).

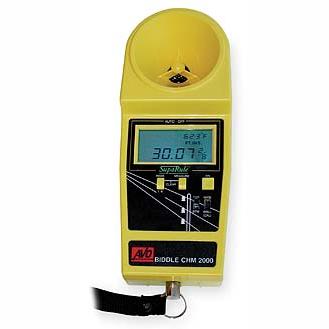

The Biddle CHM Series of Cable Height Meters utilize ultrasonic sound to determine the height of up to six overhead cables and wires. The instruments are designed to address specific measuring requirements on cables up to 75 feed (23 m). The CHM600 (C/N 659600) and CHM600E (C/N 659600E) are designed primarily for power cable applications, while the CHM2000 is designed for telecommunication applications.

The Cable Height Meters are capable of measuring the lowest or highest cables (provided it is within range). Additionally the spacing between the next five cables, by selection of ¡°Bottom UP¡° mode or ¡°Top Down¡° mode, can be displayed. Applications include measuring cable heights of: telephone lines, distribution lines, transmission lines, cable television (installers and contractors), street lights, SAG (lowest point to ground) and separation between up to six cables.

The instrument can be used to ensure that OSHA overhead clearance regulations are met at construction sites. It also provides a safer way to measure cable heights on highly congested roadways.

Additionally the Cable Height Meters offer an easy way to check whether the device has remained in calibration since its purchase date. Switching to 'CAL' mode also allows the instruments to be used indoors.


CHM Series
  • Measures the height of up to six overhead cables
  • Dramatically reduces measuring time
  • Inherently safe
  • Hand-held portability
  • Calibration and maintenance free operation
  • No physical connection to cables or wires
  • Automatic power off


CAT NO. MODEL DEscRIPTION AVAIL PRICE
BD121136   659600   Cable Height Meter (50ft. max height)   Yes   1,069,200
BD121138   659600E   Cable Height Meter (75ft. max height)   Yes   1,242,000
BD121130   CHM2000   Cable Height Meter (35ft. max height)   Yes   972,000
BD121139   659601   OPTIONAL Leather case for 659600 & 659600E only FOR Biddle¢ç Cable Height Meters   Yes   172,800
