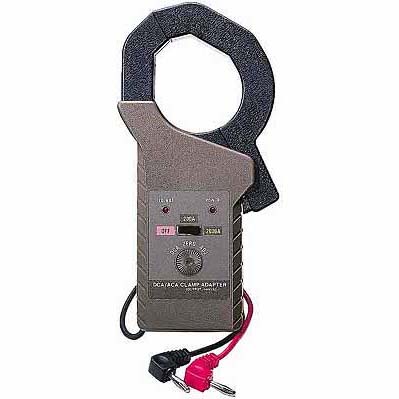

EH2295630 DC/AC Current Clamp-On

제조사 : DAVIS
제품번호:EH2295630
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Measures DC and AC current in two ranges from 0-200 and 0-2000 Amps
easures DC and AC current in two ranges from 0-200 and 0-2000 Amps and converts it to 1 mV/count for reading current on any multimeter or voltage recorder. Simply connect leads (terminated with banana plugs) into standard multimeter sockets, and switch multimeter to 200 mV or 2 volt range, then clamp onto wire or cable. Accurate to 2% up to 1200 Amps, 2.5% from 1201 to 2000 Amps. Includes “zero” adjust knob for optimizing accuracy and a LO BATT LED to indicate that the battery needs to be changed.

Features
  • 2.5" (64mm) clamp jaw
  • Ranges: 0 to 200A and 0 to 2000A AC/DC
  • DC zero adjust
  • Outputs 1mV/A
  • 2% basic accuracy
  • Dims/Wt: 7.7 x 3.9 x 1.4" (196x100x35mm)/ 1.2lb (500g)
  • Complete with 9V battery, 1.8 ft (57cm) cable with banana plugs

CAT NO. MODEL DEscRIPTION AVAIL PRICE
EH2295630   380905   DC/AC CURRENT CLAMP-ON ADAPTOR0-200/2000A   Yes   213,840
