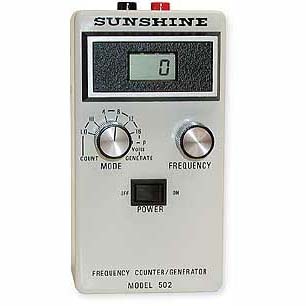

502 Dual Function Frequency Counter and Generator

제조사 : DAVIS
제품번호:502
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Model 502 is a dual function hand held instrument specifically designed for train repair applications.
The Model 502 is a dual function (counts and generates AC waveforms) hand held instrument specifically designed for train repair applications. This instrument can be used in the calibration of devices such as control panel speedometers and wheel speed transducers. Battery operated, the Model 502 provides precise counting of input and output frequencies that can be converted to your specific engineering units.

Typical Applications: For the Calibration or Functional Check of Equipment utilizing frequency based waveforms representing parameters such as RPM, GPM, FPM or MPH.

SPECIFICATIONS
Display 4 digit LCD, .35" high
Dimensions 6" L x 3" W x 2" D
Input 2 – 18 Volt peak to peak signal, 15 to 9999 Hz
(sine, square triangle or other periodic waveforms)
Output 4, 8, 12 or 16 volts peak to peak bi-polar square wave adjustable from 15 to 3000 Hz;
10 mA current draw max.
Power Two (2) 9 Volt batteries (included)

CAT NO. MODEL DEscRIPTION AVAIL PRICE
502   502   Dual Function Frequency Counter and Generator   Yes   1,674,000
