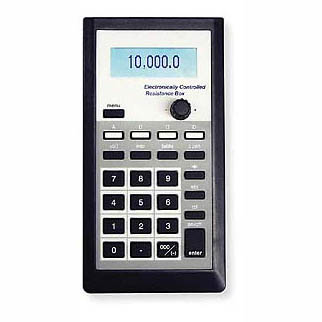

IT250 Elect. Ctrl. Resistance Box 1Ω-24 M

제조사 : DAVIS
제품번호:IT250
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

This Resistance Box is like nothing you have ever seen before! Microprocessor-controlled
This Resistance Box is like nothing you have ever seen before! Microprocessor-controlled and loaded with innovative features, the Resistance Box succeeds in providing highly accurate and precise resistance values in an intuitive and user-friendly fashion. With a resistance value range of up to 24 MΩ and a power rating of up to 1 watt, the handheld unit is practical for all industries including automotive, medical, test & measurement, telecommunications, and HVAC.

Automatic RTD simulation
The Translation Table Add-on enables the user to download and store data tables in the Resistance Decade Box for translating a known, user-definable physical characteristic into a resistance value. Use this option to simulate any type of transducer that converts a physical phenomenon into a resistance value: thermistors, conductivity sensors, etc... Each table may contain up to 256 equivalences.

Software
Using the RS-232 interface and the Software Development Kit, you can control the unit from a remote computer and design automated test equipment to fit your custom application.

Features
  • Economical
  • Keypad Interface
  • Quick Value Keys
  • Memory Keys
  • Current Limiter
  • Increment Value Setting
  • Open Key
  • Easy-to-Read LCD Display
  • Automatic Residual Resistance
  • Auto-Off Power shuts off after 4 minutes of inactivity
  • RS-232 Interface Capability
  • Field Calibration
  • FLASH Software Updates

SPECIFICATIONS
Model

IT250

IT260

IT270

Range

0 to 24,000,000 Ω

0 to 24,000,000.0 Ω

0 to 1,500,000.00 Ω

Resolution

1 Ω

0.1 Ω

.01 Ω

Accuracy

±1 Ω (up to 1,000 Ω)
± 0.1% (above 1,000.0 Ω)

± 0.5 Ω (up to 1,000.0 Ω)
± 0.1% (above 1,000 Ω)

± 0.5 Ω (up to 5,000.0 Ω)
± 0.1% (above 5,000.0 Ω)

Power Rating

1.0 W

1.0 W

1.0 W

Power Supply

4 AA alkaline batteries

4 AA alkaline batteries

4 AA alkaline batteries


CAT NO. MODEL DEscRIPTION AVAIL PRICE
IT250   OS-250   Elect. Ctrl. Resistance Box 1Ω-24 M   Yes   3,021,840
IT260   OS-260   Elect. Ctrl. Resistance Box 0.1Ω -24 M   Yes   3,453,840
IT270   OS-270   Elect. Ctrl. Resistance Box 0.01Ω -1.5 M   Yes   3,885,840
IT271   OS-SWK   OPTIONAL OS customization software development kit FOR Electronically Controlled Resistance Box and RTD Simulator   Yes   429,840



IT272   OS-TL   OPTIONAL OS test leads, dual banana to mini-alligator FOR Electronically Controlled Resistance Box and RTD Simulator   Yes   54,000
