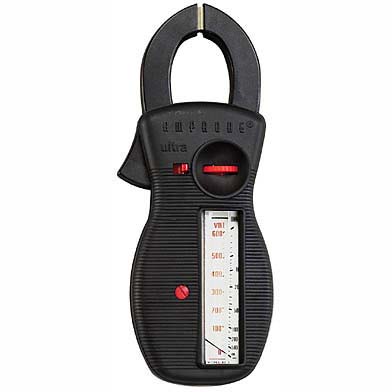

AM399100 RS-3 Clamp-On Meter

제조사 : DAVIS
제품번호:AM399100
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Extendo Leads act as an extra pair of hands, making voltage measurements faster and easier.
Features
  • New Model “RS-3” has high energy protection with fuse protection on the ohmmeter range against misapplication to 600 volts
  • Extendo Leads act as an extra pair of hands, making voltage measurements faster and easier. They are supplied with all “RS-A” models and have replaceable screw-in probe tips
  • Clamp-On transformer jaws. Take current readings without interrupting service. Clamp around conductors up to 1" (2.54 cm) in diameter or 500 MCM. 2" (5.08 cm) or 2000 MCM for 1000 ampere models
  • Pointer lock. Take readings in hard-to-reach or darkened areas, lock the pointer and read where it’s convenient
  • Recessed, break-resistant window magnifies scale, makes reading easier. Reduces possibility of static electricity build-up
  • Leads lock in. Can’t unexpectedly pull out and leave high voltage exposed
  • Supplied with all-weather test leads, carrying case
  • High case breakdown voltage: 3500 VAC




SPECIFICATIONS RS-3
AC Voltage Ranges 0-150/300/600
AC Current Ranges 0-6/15/40/100/300
Resistance Accuracy 25Ω midscale ±3% arc
Case G
Operating Frequency 60Hz
Jaw Size 1" 2.54cm
Weight 10 oz 283g

CAT NO. MODEL DEscRIPTION AVAIL PRICE
AM399100   RS-3   ROTARY SCALE CLAMP- ON METER   Yes   222,372
