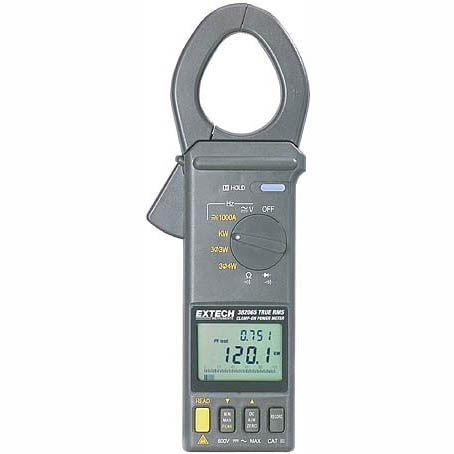

EH382060 Clamp-On Power Datalogger

제조사 : DAVIS
제품번호:EH382060
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Display True Power,Apparent Power,Power Factor,True RMS Voltage and Current,Resistance and Frequency
Features
  • 1000A Clamp measures 1f or 3f power to 600kW
  • Display True Power, Apparent Power, Power Factor, True RMS Voltage and Current, Resistance and Frequency
  • Dual display of kW+PF, kVA+PF, V+A, A+Hz or V+Hz
  • Clamp jaws open to 1.8" (46mm)
  • Built-in recorder datalogs up to 4000 readings or download to a PC
  • 25 point data memory viewable on the LCD display
  • Full function display on large 4-digit LCD with fast 40 segment bar graph, Peak Hold and MIN/MAX
  • Optional RS-232 module with PC software to capture and display data
  • Model 382065 includes 9V battery, alligator clips, test leads and case; Model 382068 includes 382065, RS-232 module, Windows® compatible software and cable.

SPECIFICATIONS


Range

Resolution Basic Accuracy
True Power 600KW 10W ±(2%rdg+5d)
Apparent Power 1000KVA 10VA ±(2%rdg+5d)
Peak Current 1000A 0.1A ±(6%rdg+10d)
Peak Voltage 600V 0.1V ±(6%rdg+10d)
AC Current (40-500Hz) 1000A 0.1A ±(1.5%rdg+5d)
DC Current 1000A 0.1A ±(1.5%rdg+5d)
AC Voltage (40-500Hz) 600V 100mV ±(0.5%rdg+5d)
DC Voltage 600V 100mV ±(0.5%rdg+5d)
Frequency 500Hz 0.1Hz ±(0.5%rdg+5d)
Resistance 10KΩ 1Ω ±(1%rdg+5d)
Continuity Beeper when <50Ω
Dimensions/Weight 10.2x3.7x1.8" (260x93x45mm)/ 15.9oz (450g)

CAT NO. MODEL DEscRIPTION AVAIL PRICE
EH382060   382065   Clamp-On Power Datalogger   Yes   1,293,840
EH382063   382068   Clamp-On Power Datalogger Kit with Software   Yes   1,509,840
EH382062   382062   OPTIONAL RS-232 CABLE AND SOFTWARE FOR Clamp-on Power Datalogger   Yes   192,240



EH480172   480172   OPTIONAL AC LINE SEPARATOR 3-PRONG PLUG FOR Clamp-on Power Datalogger   Yes   41,040
