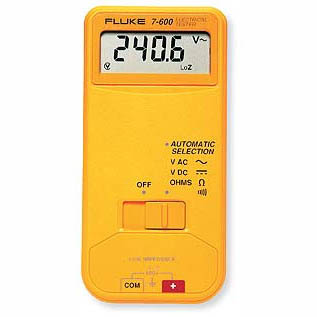

The economical Fluke 7-600 is ideal for first-level electrical troubleshooting. The compact design
The economical Fluke 7-600 is ideal for first-level electrical troubleshooting. The compact design and slide switch offer one-handed operation.
Auto Selection simplifies voltage measurements in power environments. When measuring ohms/continuity with more than 4.5 volts present across the input jacks (intentional or not) the meter automatically switches to measuring ac or dc volts, whichever is greater. Input impedance is approximately 2 kΩ to 100 kΩ, helping determine if voltage is from leakage (so-called "ghost" voltages) or a hard connection. Overload protection is provided in all measurement modes
Features
4000 count digital display
Automatic readings of volts AC
Automatic readings of volts DC
400 Ohm Range/Continuity beeper
TL75 Test Leads included with meter
High visibility yellow plastic housing makes it easy to locate on the job or in your toolbox
Simply turn on and use
Safety Conformance: The 7-600 has been tested and approved for Protection Class II requirement of UL3111, TUV, ANSI/ISA-S82, CSA C22.2 No. 1010-1-1992, and VDE 0411
SPECIFICATIONS
Function
Range and Resolution
Best Accuracy
DC Volts
40.00V, 400.0V, 600V
± (1.5% +1)
AC Volts
40.00V, 400.0V, 600V
±(2.9% +3)
Ohms
400.0W
± (1.5% +2)
Battery Life
Alkaline, 650 hours continuous, sleep mode
Size (without holster)
5.55" L x 2.75" W x 1.35" D
Weight
286 gm (10 oz) Two year warranty
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
FL7600
7-600
Electrical Tester
Yes
192,240
The Fluke7-600 comes with TL75 Hard Point Test Leads, a 9 volt battery (installed) and owners manual.
