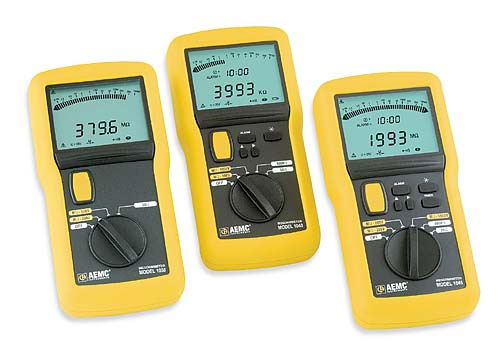

Digital/Analog Megohmmeters are the latest design in multiple voltage
insulation, resistance and continuity meters. They are general purpose
insulation testers designed for both field and shop use. They are ideal
for measuring the insulation qualities of motors, transformers and power
cables. Test voltages of 250V, 500V or 1000V are selectable depending on
model. Measurement of AC and DC voltage, resistance and continuity can
also be performed.
Field kits include
megohmmeter, field case, two color-coded leads, black test probe, two
alligator clips, remote test probe, batteries and user manual.
Features
True
Megohmmeter®
Test
voltage combinations 250V, 500V and 1000V
Insulation
measurements to 2000M ohm
Automatic
test inhibition if live sample (>25V)
Automatic
discharge for operator safety
Multi-line
4000-count backlit digital display with analog bargraph
Resistance
measurements to 400k ohm
Continuity
with 200mA test current
Timer
function for easy DAR and PI
Over-molded
slip-proof holster for rugged field use
IEC
61010-1, 300V, Cat. II, IEC 61557 and CE rated
Supplied
with a soft carrying case
SPECIFICATIONS
Models
AE211689
AE211692
AE211693
Insulation
Tests
Test
Voltage
250V
–
250V
500V
500V
500V
1000V
1000V
Measurement Range
50kΩ
to 2000MΩ (2GΩ)
Short Circuit
Current
≤3mA
Accuracy
3%
Reading ± 5ct (<40MΩ)</font>
3%
Reading ± 2ct (>40MΩ)
Voltage Test/Safety
Check
0
to 600Vac/dc
Voltage Warning
Indicator
>25V
Test Inhibition
Yes
>25V
Resistance
Tests (Models AE211692 & AE211693)
Measurement Range
–
0.0
to 400kΩ
Test Voltage
–
7
to 9V
Accuracy
–
3%
Reading ± 1ct
Continuity
Tests
Measurement Range
0.00
to 20.00Ω
Test Current
≥200mA
Accuracy
3%
Reading ± 1ct
CAT
NO.
MODEL
DEscRIPTION
AVAIL
PRICE
AE211689
1030
Megohmmeter
Model 1030 (Digital, Bargraph, 250V, 500V)
