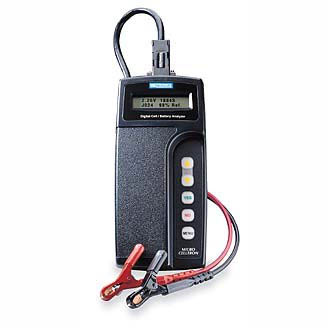

MD300100 Battery Conductance Tester Kit

제조사 : DAVIS
제품번호:MD300100
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Micro Celltron is a quick, simple, safe and accurate operation of measuring individual cell
The Micro Celltron is a quick, simple, safe and accurate operation of measuring individual cell and overall string health and voltage. It is also a consistent, repeatable on-line testing unit that will not allow discharge to batteries. Tests 2-volt through 12-volt batteries on-line or off-line. Stores up to 252 consecutive test results and overall string statistics.

Features
  • Hand-held, lightweight, totally portable
  • Infrared printing and data transfer to PC/Laptop, multiple location and system storage capability
  • User-friendly menu operation
  • Test an entire string in minutes
  • Instantly review high cell, low cell, and overall string health
  • No warm up required
  • Passive test, no discharge
  • Less than .001 amp hour removed per test
  • Proven correlation with state-of-health capacity for fully-formed batteries
  • Voltage measured and displayed for state-of-charge verification
  • Conductance testing detailed by EPRI procedure and IEEE standards 1187, 1188, 484 and 450


CAT NO. MODEL DEscRIPTION AVAIL PRICE
MD300100   Micro Celltron CTM-300   Battery Conductance Tester Kit with infrared printer, infrared temperature sensor, carrying case, clamp & probe cables   Yes   9,501,840



MD300101   C061   OPTIONAL inForm software and infrared receiver for PC/Laptop FOR Battery Analyzer   Yes   1,458,000



MD300102   C056   OPTIONAL AMP test connector cable FOR Battery Analyzer   Yes   429,840
MD300103   C080   OPTIONAL Multiple String Storage Module (requires inForm battery data software) FOR Battery Analyzer   Yes   1,293,840
