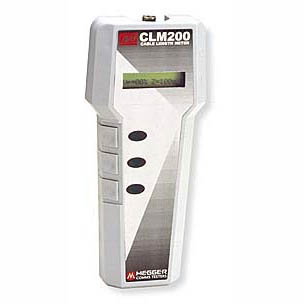

MG8449 Cable Length Meter

제조사 : DAVIS
제품번호:MG8449
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Megger® CLM200Cable Length Meter is a hand-held unit that measures the length of telecommunication
The Megger® CLM200 Cable Length Meter is a hand-held unit that measures the length of telecommunication, data communication, RF, small signal and power cables on drums, in cut lengths or in installed sections. Ergonomically designed, robust and simple to operate, the CLM200 is used to measure cable length by simply attaching the instrument to one end of the cable.

The CLM200 is also able to measure the distance to an open circuit or short circuit fault on the cable under test.


Features
  • Measures cable length to 6,000 ft
  • Internal library of standard cable types
  • Locates distance to a short circuit
  • Low battery consumption (2000 tests)
  • Automatic power down
  • Low battery indication
  • Receiving & warehouse applications (Inspection, Stock Receiving & Job Allocation)
  • Allocating drums to cable runs on-site
  • Measure length of a section in a LAN
  • 3 Year Warranty

SPECIFICATIONS
Measurement Ranges
6.0 to 300.0 ft. with 4 in. resolution
300 to 6,000 ft. with 3 ft. resolution
Accuracy of Measurement
Coaxial & Twisted Pair 0 to 30 ft. ±1.5 ft.
Unscreened Multicore* 0 to 30 ft. ±3 ft. 30 to 6,000 ft. ±10%
 * The velocity of propagations less well defined with unscreened multicore cable, including mains cable, and is lower when it is wound on a drum. These factors limit the accuracy of any TDR in these applications.
Cable Fault Location
 The CLM200 will indicate if a cable contains an open circuit or short circuit fault and display the distance to the fault providing it is within the measurement range of the instrument.
Selectable Cable Impedance
50 Ohm Power Cables/Coaxial Cables
75 Ohm Coaxial Cables
100 Ohm Twisted Pair
Selectable Velocity of Propagation
User selected from 1% to 99% in 1% increments
Pre-programmed Cable Library
 The characteristics of various different communication cable types are pre-programmed into the internal memory of the CLM200

CAT NO. MODEL DEscRIPTION AVAIL PRICE
MG8449   CLM200   Cable Length Meter   Yes   702,000
