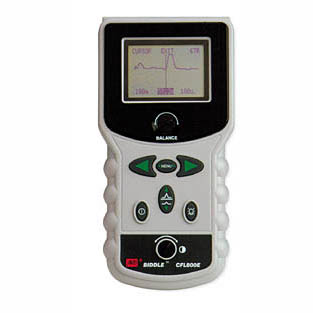

BD655800 Hand-Held Cable Fault Locating

제조사 : DAVIS
제품번호:BD655800
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

30 ft to 9,000 ft (9 to 3000 m) TDR measurement ranges, Automatic resistance bridge
Features
  • 30 ft to 9,000 ft (9 to 3000 m) TDR measurement ranges
  • Automatic resistance bridge with measurement range up to 300,000 ft (100 km)
  • Suitable for power, telecom, coaxial, and datacom cables
  • Dust and waterproof to IP54
  • Three-year warranty
  • Uses standard AA cells

SPECIFICATIONS

TDR

 Ranges: 30 ft, 90 ft, 300 ft, 900 ft, 3000 ft, 9,000 ft (10 m, 30 m, 100 m, 300 m, 1 km, 3 km)
Resolution 1% of range
Accuracy ±1% of range ±pixel at 0.67 VF
Voltage Measuring Range +/-250 VDC +/-1% +/-1 digit
Gain Set for each range with four user selectable steps
Velocity Factor Variable from 0.30 to 0.99 in steps of 0.01
Output pulse 5 V peak to peak into open circuit
Output Impedance 100 Ω
Balance Adjustment (TX Null) 0 to 120 Ω
Update Rate Once per second for five minutes after last key pressed
Bridge Loop and Fault Resistance Ranges: 0 to 190 Ω in steps of 0.1 Ω, 190 Ω to 2000 Ω in steps of 1 Ω
Accuracy of Fault Reading ±0.2% ±1 digit from 0Ω to 1 MΩ, ±0.2% ±3 digits from 1 MΩ to 5 MΩ, ±0.2% ±6 digits from 5 MΩ to 10 MΩ
Loop Reading ±0.2% of reading ±1 digit on Ω
Voltage to Line 100 VDC nominal
Current to Line 100 μA DC nominal
Insulation Range 0 to 19 MΩ in steps of 0.01 MΩ, 19 MΩ to 200 MΩ in steps of 0.1 MΩ
Insulation Accuracy ±0.2% of reading ±1 digit
Input Protection 300 VDC or 300 VAC ≤60 Hz
Power Down Automatic after five minutes inactivity
Backlight One minute when activated
Batteries 6 x LR6 (AA) nominal voltage 9 VDC (alkali) 7.2V (NiCd)
Battery Consumption TDR Mode: 100 mA nominal, 140 mA with backlight, Bridge Mode:50 mA nominal, 90 mA with backlight
Hours: 20/30 hours, depending on backlight use
Safety Meets BS EN 61010-1: 1993 (including amendment 2: 1995-06), and IEC 60950 3rd Edition: 1999-04 and rated for use on TNV-3 circuits.
EMC Complies with electromagnetic compatibility specification (light industrial) BS/EN50081-1-1992 BS/EN50082-1-1992
Mechanical Case Dimensions: 9.05 H x 4.5 W x 1.88 Din. (230 H x 115 W x 48 D mm) Instrument Weight: 1.32 lb (0.6 kg)
Display 128 x 64 pixel graphic LCD
CAT NO. MODEL DEscRIPTION AVAIL PRICE
BD655800   655800E   HAND-HELD CABLE FAULT LOCATING & VERIFICATION TESTER   Yes   4,749,840
Includes TDR bed of nails alligator test lead set and bridge bed of nails alligator test lead set.
BD121124   EV6220-669   OPTIONAL BLOCKING FILTER FOR Cable Fault Locating and Verification Tester   Yes   645,840
