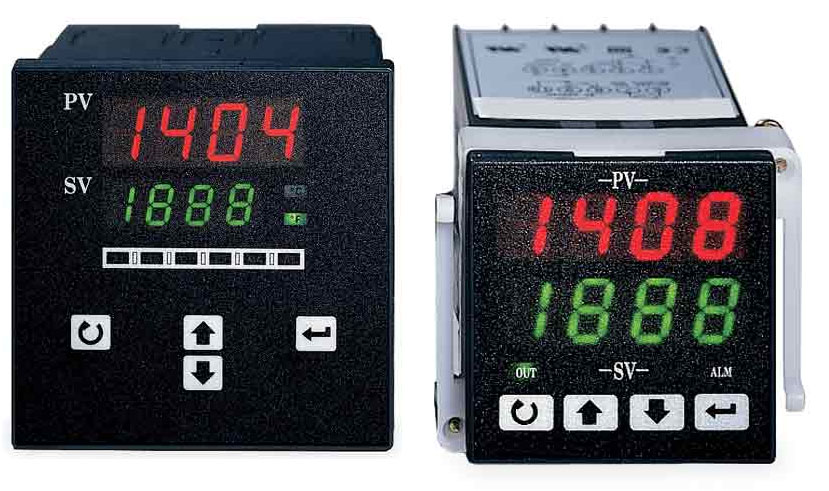

EH43804911 1/16 Din PID Controller
|
| Dual 4-digit LED displays for process and setpoint values, Control output and alarm LED indication
|
|
Common
Features
|
- Dual
4-digit LED displays for process and setpoint values
- Control
output and alarm LED indication
- Easy
setup using user friendly menus
- One-touch
autotuning for precise control
- Built-in
alarm delay countdown timer for activating alarm relay
- Anti-reset
to minimize overshoot
- Accepts
multiple thermocouple, RTD or process inputs
- Standard
Limit Alarm relay(s) with 8 programmable modes
- Control
outputs: 3 Amp relay, 24VDC to drive SSR or 4-20mA
- Screw
terminal connections
- Non-volatile
memory stores setting values in case of power failure
- Built-in
diagnostics reduce troubleshooting time
- Complete
with mounting hardware
|
| |
|
48VTR
& 96VTR Advanced Features
|
- Alarm
relays have an adjustable dead band for dual control for
heat/cool applications
- Auto/manual
control modes
- Single
stage ramp/soak dramatically reduces overshoot of setpoint
for “soft start”
|
| |
|
| CAT
NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| EH43804911 |
|
48VTR11 |
|
1/16 DIN PID
CONTROLLER W/ TC IN & 5 AMP OUTPUT |
|
Yes |
|
421,200
|
| EH43804913 |
|
48VTR13 |
|
1/16 DIN PID
CONTROLLER W/ TC IN &4-20 mA OUT |
|
Yes |
|
494,640
|
| EH438049A1 |
|
48VTRA1 |
|
1/16 DIN PID
CONTROLLER W/4-20mA IN & 5 AMP OUT |
|
Yes |
|
421,200
|
| EH438049A3 |
|
48VTRA3 |
|
1/16 DIN PID
CONTROLLER W/4-20mA IN &4-20mA OUT |
|
Yes |
|
494,640
|
| EH438049R1 |
|
48VTRR1 |
|
1/16 DIN PID
CONTROLLER W/RTD IN & 5 AMP OUTPUT |
|
Yes |
|
421,200
|
| EH438049R3 |
|
48VTRR3 |
|
1/16 DIN PID
CONTROLLER W/ RTDIN & 4-20mA OUT |
|
Yes |
|
494,640
|
| EH96VTR11 |
|
96VTR11 |
|
1/4 DIN PID
CONTROLLER W/TC IN5 AMP OUT |
|
Yes |
|
645,840
|
| EH96VTR13 |
|
96VTR13 |
|
1/4 DIN PID
CONTROLLER W/TC IN4-20mA OUT |
|
Yes |
|
753,840
|
| EH96VTRA1 |
|
96VTRA1 |
|
1/4 DIN PID
CONTROLR W/4-20mA IN & 5 AMP OUT |
|
Yes |
|
645,840
|
| EH96VTRA3 |
|
96VTRA3 |
|
1/4 DIN PID
CONTROLLER W/4-20 IN/4-20mA OUT |
|
Yes |
|
753,840
|
| EH96VTRR1 |
|
96VTRR1 |
|
1/4 DIN PID
CONTROLR W/RTD IN 5 AMP OUT |
|
Yes |
|
645,840
|
| EH96VTRR3 |
|
96VTRR3 |
|
1/4 DIN PID
CONTROLLER RTD IN 4-20mA OUT |
|
Yes |
|
753,840
|
| EH438050 |
|
480996 |
|
OPTIONAL
1/16 DIN TO 1/4 DIN CONVERTER PLATE
FOR Process & Temperature Autotuning PID Controllers |
|
Yes |
|
32,400
|
| EH404216 |
|
404216 |
|
OPTIONAL
1/16 DIN NEMA-4X SPLASHPROOF COVER
FOR Process & Temperature Autotuning PID Controllers |
|
Yes |
|
41,040
|
| |
