EN60715 2.3" LED current loop input display

제조사 : DAVIS
제품번호:EN60715
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Used wherever it is necessary to view a critical process (temperature, pressure, flow, etc.) from a distance.

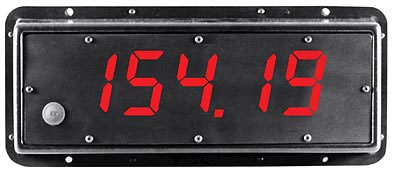

Used wherever it is necessary to view a critical process (temperature, pressure, flow, etc.) from a distance. These large 2.3" tall, bright red-orange LED indicators can be surface mounted and are weather resistant. Signal inputs are current loop (Model EN60715) 0-20mA, 4/20mA, etc and voltage (EN60716) 1/5V, 0/10V, etc.. Scaling adjustments and decimal points are accessible from the front and may be adjusted for a full scale reading anywhere between 500 and 19,999. 115VAC power is standard.

Features
  • Process voltage & current loop signal inputs
  • Broad range user adjustable scaling
  • Sealed surface mount case
  • Analog output option
  • Excitation voltage output option
  • Two year warranty

SPECIFICATIONS

Accuracy (including linearity)

    ±2 counts
Signal Input  EN60715  SPAN 0-20mA or 4/20mA = 500 to 19,999
ZERO 0 to 4mA
EN60716   SPAN 0/5V, 1/5V, 0/10V or
  1/10V = 500 to 19,999
ZERO -.05 to +1.1V
Temperature Range     -10°C to +60°C

CAT NO. MODEL DEscRIPTION AVAIL PRICE
EN60715   PI700   2.3" LED current loop input display   Yes   1,293,840
EN60716   PI800   2.3" LED voltage input display   Yes   1,293,840
