LA282138 5 digit Serial ASCII

제조사 : DAVIS
제품번호:LA282138
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

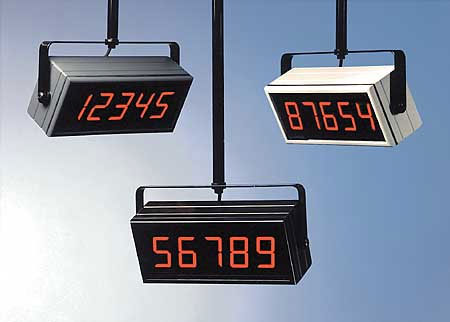

Large digit displays are your flexible solution for viewing distances up to 360 feet .
Large digit displays are your flexible solution for viewing distances up to 360 feet . The displays are housed in a high-impact NEMA4X case.

Five digit heights are available: 2.2", 4.0", 5.7", 7.9", and 11.0". Solid segments are used for normal-brightness 2.2" and 4.0" digits. Individual 5 mm LEDs are used for larger digits and outdoor-brightness versions.

Outdoor versions are available with ultra-high brightness LEDs and a NEMA-4 (IP65) rated weather cowl. They can be read across an industrial yard, parking lot or roadway.

SPECIFICATIONS
Digit height 2.2" (57 mm) 4.0" (102 mm) 5.7" (144 mm) 7.9" (200 mm) 11.0" (280 mm)
Case WxH, 5 digits 11.3" x 4.7" 18.9" x 6.6" 24.6" x 7.6" 32.4" x 9.8" 46.1" x 13.2"
Case WxH, 7 digits 15.1" x 4.7" 26.4" x 6.6" 34.0 x 7.6" 44.9" x 9.8" 63.2" x 13.2"
Case depth3.54" 3.54" 3.54" 3.54" 3.54"
Viewing distance 66' 130' 200' 260' 360'

CAT NO. MODEL DEscRIPTION AVAIL PRICE
LA282138   G020002SER5   5 digit Serial ASCII, 2" red LED, 85-264 Vac power, wall mount   Yes   1,509,840
LA282139   G040002SER5   5 digit Serial ASCII, 4" red LED, 85-264 Vac power, wall mount   Yes   2,149,200
LA282140   G060002SER5   5 digit Serial ASCII, 6" red LED, 85-264 Vac power, wall mount   Yes   2,797,200
LA282141   G020002SER7   7 digit Serial ASCII, 2" red LED, 85-264 Vac power, wall mount   Yes   1,890,000
LA282142   G040002SER7   7 digit Serial ASCII, 4" red LED, 85-264 Vac power, wall mount   Yes   2,581,200
LA282143   G060002SER7   7 digit Serial ASCII, 6" red LED, 85-264 Vac power, wall mount   Yes   3,013,200
LA282144   G020002P   Process input, 2" red LED, 85-264 Vac power, wall mount   Yes   1,836,000
LA282145   G040002P   Process input, 4" red LED, 85-264 Vac power, wall mount   Yes   2,354,400
LA282146   G060002P   Process input, 6" red LED, 85-264 Vac power, wall mount   Yes   2,797,200
LA282147   G020002SG   Strain gauge input, 2" red LED, 85-264 Vac power, wall mount   Yes   2,106,000
LA282148   G040002SG   Strain gauge input, 4" red LED, 85-264 Vac power, wall mount   Yes   2,354,400
LA282149   G060002SG   Strain gauge input, 6" red LED, 85-264 Vac power, wall mount   Yes   2,797,200
LA282150   G020002CLK4   Clock hh:mm:ss, 2" red LED, 85-264 Vac power, wall mount   Yes   1,695,600
LA282151   G040002CLK4   Clock hh:mm, 4" red LED, 85-264 Vac power, wall mount   Yes   2,365,200
LA282152   G060002CLK4   Clock hh:mm, 6" red LED, 85-264 Vac power, wall mount   Yes   2,581,200
LA282153   G020002CLK6   Clock hh:mm:ss, 2" red LED, 85-264 Vac power, wall mount   Yes   1,890,000
LA282154   G040002CLK6   Clock hh:mm:ss, 4" red LED, 85-264 Vac power, wall mount   Yes   2,581,200
LA282155   G060002CLK6   Clock hh:mm:ss, 6" red LED, 85-264 Vac power, wall mount   Yes   3,013,200
LA282156   G020002TIM4   Timer hh:mm:ss, 2" red LED, 85-264 Vac power, wall mount   Yes   1,695,600
LA282157   G040002TIM4   Timer hh:mm, 4" red LED, 85-264 Vac power, wall mount   Yes   2,365,200
LA282158   G060002TIM4   Timer hh:mm, 6" red LED, 85-264 Vac power, wall mount   Yes   2,581,200
LA282159   G020002TIM6   Timer hh:mm:ss, 2" red LED, 85-264 Vac power, wall mount   Yes   1,890,000
LA282160   G040002TIM6   Timer hh:mm:ss, 4" red LED, 85-264 Vac power, wall mount   Yes   2,581,200
LA282161   G060002TIM6   Timer hh:mm:ss, 6" red LED, 85-264 Vac power, wall mount   Yes   3,013,200
LA282162   G020002TOT5   5 Digit Totalizer, 2" red LED, 85-264 Vac power, wall mount   Yes   1,933,200
LA282163   G040002TOT5   5 Digit Totalizer, 4" red LED, 85-264 Vac power, wall mount   Yes   2,797,200
LA282164   G060002TOT5   5 Digit Totalizer, 6" red LED, 85-264 Vac power, wall mount   Yes   3,229,200
LA282165   G020002TOT7   7 Digit Totalizer, 2" red LED, 85-264 Vac power, wall mount   Yes   1,933,200
LA282166   G040002TOT7   7 Digit Totalizer, 4" red LED, 85-264 Vac power, wall mount   Yes   2,797,200
LA282167   G060002TOT7   7 Digit Totalizer, 6" red LED, 85-264 Vac power, wall mount   Yes   3,237,840
LA282168   GRP   OPTIONAL Remote Programmer FOR Large-Digit Displays   Yes   172,800
