LA282126 DC in, red LED, 9-37 Vdc power

제조사 : DAVIS
제품번호:LA282126
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

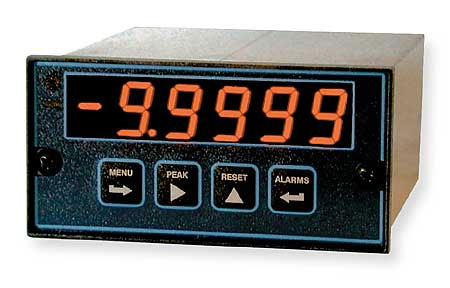

The True RMS Meter displays the true AC RMS value of complex waveforms from 10 Hz to 10 kHz.
The True RMS Meter displays the true AC RMS value of complex waveforms from 10 Hz to 10 kHz. Peaks up to 2.4 times the maximum of each range are accurately processed. Five DC voltage ranges from 200.00 mV to 660.0 V, plus four current ranges from 2.0000 mA to 5.000A, are user selectable and factory precalibrated.

The 5.000A range measures voltage across a built-in 10 mohm current shunt. Readings can easily be scaled for use with external current transfomers and current shunts. High common mode rejection allows stable readings with current shunts located on the high side of the line.

Features
  • 99,999 display span
  • 0.1% accuracy
  • Crest factor of 2.4 at full scale
  • Ranges user-selectable & factory precalibrated
  • Scalable for direct readout with external current shunts or current transformers
  • 1/8 DIN, NEMA-4X front panel
  • Screw-clamp connectors

SPECIFICATIONS
Display 99,999, 0.56" high LED digits
Accuracy <0.1% FS, 10Hz to 10kHz, 1 to 100% FS
Zero & Span ±99,999 (programmable)
AC Voltage 200mV, 2.0000 V, 20.000 V, 200.00 V, 660 V
AC Current 2.0000 mA, 20.000 mA, 200.00 mA, 5.000 A

CAT NO. MODEL DEscRIPTION AVAIL PRICE
LA282126   L21000DC   DC in, red LED, 9-37 Vdc power   Yes   581,040
LA282127   L20000AC   AC in, red LED, 85-264 Vac power   Yes   529,200
LA282128   L7000AC   AC in, green LED, 9-37 Vdc power   Yes   594,000
LA282129   L21000AC   AC in, red LED, 9-37 Vdc power   Yes   594,000
LA282105   LDR   OPTIONAL Dual 10A Form C relays FOR True RMS Meter for AC Volts & AC Amps   Yes   172,800



(same slot as LA282106)
LA282106   LOC   OPTIONAL Dual isolated solid state relays FOR True RMS Meter for AC Volts & AC Amps   Yes   118,800



(same slot as LA282105)
LA282107   LAO   OPTIONAL Isolated analog output, 0-20 mA & 0-10 V, scalable FOR True RMS Meter for AC Volts & AC Amps   Yes   194,400



LA282108   L232   OPTIONAL RS-232 data I/O FOR True RMS Meter for AC Volts & AC Amps   Yes   129,600
(same slot at LA282109)
LA282109   L485   OPTIONAL RS-485 data I/O FOR True RMS Meter for AC Volts & AC Amps   Yes   172,800
(same slot at LA282108)
