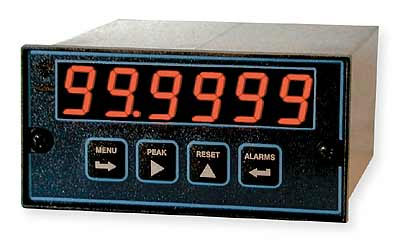

The Dual-Channel
Counter with the Basic Main Board and FR universal dual-channel pulse
input signal conditioner is a flexible 6-digit instrument which can be
programmed for multiple functions:
– Frequency, rate or period. The meter measures frequency
from 0 Hz to 1 MHz and rate in engineering units with exceptional
accuracy at high read rates. Such fast response is ideal for alarm and
control. Two channels (A & B) may be independently scaled. The
displayed channel is selected via a front panel pushbutton.
– Time interval. The meter displays pulse width or time
delay of pulses applied between channels A & B.
– Totalizing. Channels A & B may be independently set
up and scaled to count up or to count down. Scaling allows readout in
engineering units. Totals are stored in non-volatile memory.
The Dual -Channel Counter with the Extended Main Board offers all
capabilties of the version with the Basic Main Board, plus a host of
additional programmable capbilities at modest extra cost:
– Rate and total simultaneously. Channels A or B are
selected for display via a front panel pushbutton. Great for flow
applications.
– Reversible up/down counting. Count direction of Channel A
is dynamically changed by applying a signal to Channel B.
– Totalizing with external inhibit. Counting of Channel A
is controlled by applying a count start/stop signal to Channel B.
– Linearization of nonlinear inputs. Up to 240 data points
can be input from a spreadsheet.
– Arithmetic between channels: A+B, A-B, A*B, A/B, A/B-1.
– Duty cycle. This is a measure of ON or OFF period as a
percent of total period. Resolutions of 1%, 0.1% or 0.01% are
selectable.
– Stopwatch operation. Used to time single events, such as
sporting events or processes, which produce start and stop pulses. Also
used to time the width of a single pulse. The display is updated
continuously during timing.
– Phase angle. Two signals with identical periods are
applied to Channels A & B. Phase angle is the time delay between A
& B pulse edges and divided by period and displayed in degrees
– Batch control. Used to control repetitive fill operations
with up or down counting, a prewarn to control fill rates, and a
programmable delay between cycles. A dual relay board and optional third
relay are normally also used. |
| |
|
Features
|
- Functions
include frequency, rate, period, time interval, stopwatch,
total, ratio, draw, duty cycle, phase angle
- Arithmetic
functions: A+B, A-B, AxB, A/B, A/B-1
- Two
independent field-scalable channels
- Universal
pulse signal conditioner
- Pulse
input rates from 0 Hz to 1 MHz
- 6-digit
scalable display
- Muliple,
programmable operating modes
- Square
root extraction standard
- solated
5, 10, 24 Vdc excitation output
- 1/8
DIN, NEMA-4X front panel
|
| |
|
SPECIFICATIONS
| Display |
±999,999,
0.56" high LED digits |
| Zero & Span
Adjust |
±999,999
(programmable) |
| Read Rate |
To 20/sec with
adaptive digital filtering |
| Time Base Accuracy |
Crystal calibrated
to ±2 ppm |
| Signal Types |
NPN or PNP
proximity switches, contact closures, digital logic, magnetic pickups
down to 12 mV, or AC signals to 250 Vac. |
| Frequency Range |
0 Hz to 1 MHz |
| Transducer
Excitation |
5V @ 100 mA, 10V @
120 mA, 24V@ 50 mA |
| CAT
NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| LA282114 |
|
L50000FR |
|
Pulse in,
green LED, 85-264 Vac power |
|
Yes |
|
516,240
|
| LA282115 |
|
L60000FR |
|
Pulse in, red
LED, 85-264 Vac power |
|
Yes |
|
516,240
|
| LA282116 |
|
L51000FR |
|
Pulse in,
green LED, 9-37 Vdc power |
|
Yes |
|
594,000
|
| LA282117 |
|
L61000FR |
|
Pulse in, red
LED, 9-37 Vdc power |
|
Yes |
|
594,000
|
| LA282118 |
|
L70000FR |
|
Pulse in,
green LED, 85-264 Vac power, extended laureate Counter |
|
Yes |
|
615,600
|
| LA282119 |
|
L80000FR |
|
Pulse in, red
LED, 85-264 Vac power, extended laureate Counter |
|
Yes |
|
615,600
|
| LA282120 |
|
L71000FR |
|
Pulse in,
green LED, 9-37 Vdc power, extended laureate Counter |
|
Yes |
|
637,200
|
| LA282121 |
|
L81000FR |
|
Pulse in, red
LED, 9-37 Vdc power, extended laureate Counter |
|
Yes |
|
637,200
|
| LA282115 |
|
L60000FR |
|
OPTIONAL
Pulse in, red LED, 85-264 Vac power
FOR Dual-Channel Pulse Input Meter |
|
Yes |
|
516,240
|
| LA282106 |
|
LOC |
|
OPTIONAL
Dual isolated solid state relays
FOR Dual-Channel Pulse Input Meter |
|
Yes |
|
118,800
|
| LA282107 |
|
LAO |
|
OPTIONAL
Isolated analog output, 0-20 mA & 0-10
V, scalable FOR Dual-Channel Pulse Input Meter |
|
Yes |
|
194,400
|
| LA282108 |
|
L232 |
|
OPTIONAL
RS-232 data I/O FOR
Dual-Channel Pulse Input Meter |
|
Yes |
|
129,600
|
| LA282109 |
|
L485 |
|
OPTIONAL
RS-485 data I/O FOR
Dual-Channel Pulse Input Meter |
|
Yes |
|
172,800
|
| |
