MS121119 DC Volt

제조사 : DAVIS
제품번호:MS121119
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Front-panel configurable,Direct input from temperature and other sensors,Engineering unit display

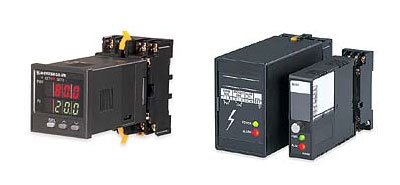

Alarm Modules / AS4 Series
  • Front-panel configurable
  • Direct input from temperature and other sensors
  • Engineering unit display
  • Dual or quad trip with independently adjustable deadband
  • CE marking

KS2V/KS2TR
  • Small 48mm square for panel or DIN rail mounting
  • DC, Thermocouple or RTD input
  • Easy UP-DOWN key setting
  • CE marking

Lightning Arrestors - M-Rester Series
  • Absorbs only the lightning surges with no interruption of the instrumentation signal
  • Lightweight, easy-to-handle, plug-in construction
  • Superior protection and selection across a wide range of applications
  • Life monitor available

CAT NO. MODEL DEscRIPTION AVAIL PRICE
MS121119   AS4V-5 Limit Alarm       Yes   842,400
Input Type   DC Volt
Field Configurable Input Range   -1V to +1V
Output   Alarm (Dual)
MS121120   AS4V-2,3       Yes   907,200
Input Type   DC Current
Field Configurable Input Range   -10V to +10V. 0 to 5mA
Output   Alarm(Quad)
MS121121   AS4T-5 Limit Alarm       Yes   907,200
Input Type   Thermocouple
Field Configurable Input Range   B, E, J, K
Output   Alarm(Dual)
MS121122   AS4T-2,3       Yes   972,000
Input Type   Thermocouple
Field Configurable Input Range   B, E, J, K
Output   Alarm(Quad)
MS121123   AS4R-5 Limit Alarm       Yes   907,200
Input Type   Platinum RTD
Field Configurable Input Range   2- or 3-wire RTDs
Output   Alarm(Dual)
MS121124   AS4R-2,3       Yes   972,000
Input Type   Platinum RTD
Field Configurable Input Range   2- or 3-wire RTDs
Output   Alarm(Quad)
MS121125   AS4M-5       Yes   907,200
Input Type   Limit Alarm Potentiometer
Field Configurable Input Range   Pot. 100 to 10K Ohm
Output   Alarm(Dual)
MS121126   AS4M-2,3       Yes   972,000
Input Type   Limit Alarm Potentiometer
Field Configurable Input Range   Pot. 100 to 10K Ohm
Output   Alarm(Quad)
MS121127   AS4LC-5 Limit Alarm       Yes   972,000
Input Type   Strain Gauge
Field Configurable Input Range   0-3mV/V, 0-10mV/V, 0-30mV/V
Output   Alarm(Dual)
MS121128   AS4LC-2,3       Yes   1,036,800
Input Type   Strain Gauge
Field Configurable Input Range   0-3mV/V, 0-10mV/V, 0-30mV/V
Output   Alarm(Quad)
MS121129   AS4CT-5 Limit Alarm       Yes   907,200
Input Type   CT
Field Configurable Input Range   0-1A AC, 0-5A AC
Output   Alarm(Dual)
MS121130   AS4CT-2,3       Yes   972,000
Input Type   CT
Field Configurable Input Range   0-1A AC, 0-5A AC
Output   Alarm(Quad)
MS121131   KS2V Limit Alarm       Yes   432,000
Input Type   DC Volt
Field Configurable Input Range   1-5V
Output   Alarm(Dual)
MS121132   KS2TR Limit Alarm       Yes   475,200
Input Type   Platinum RTD, Thermocouple
Field Configurable Input Range   Platinum RTD, B, E, J, K
Output   Alarm(Dual)
MS121133   MDP-24-1   Lightning & Surge protector for 4-20mA and pulse signal   Yes   Call 031-777-1588
MS121134   MAX   Lightning & Surge protector for AC power supplies up to 5 amps   Yes   Call 031-777-1588
MS121135   MDM2A-24   Lightning & Surge protector with life monitor for 4-20mA and pulse signal   Yes   Call 031-777-1588
MS121136   MAA   Lightning & Surge protector with life monitor for AC power supplies up to 5 amps   Yes   Call 031-777-1588
MS121137   MD-DNM   Lightning & Surge protector for Device Net Use(master)   Yes   Call 031-777-1588
MS121138   MD-DNS   Lightning & Surge protector for Device Net Use(slave)   Yes   Call 031-777-1588
MS121139   MD-TL   Lightning & Surge protector for Telecom. Line Use   Yes   Call 031-777-1588
